MC100EP91MNR2G

Active

ON Semiconductor

IC TRANSLTR UNIDIRECTIONAL 24QFN

Search across all available documentation for this part.

Active

ON Semiconductor

IC TRANSLTR UNIDIRECTIONAL 24QFN

Technical Specifications

Parameters and characteristics for this part

Specification	MC100EP91MNR2G

Channel Type	Unidirectional
Channels per Circuit	3
Input Signal	LVDS, LVCMOS, CML, HSTL, LVTTL, LVPECL
Mounting Type	Surface Mount
Number of Circuits	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Signal	NECL
Output Type	Differential

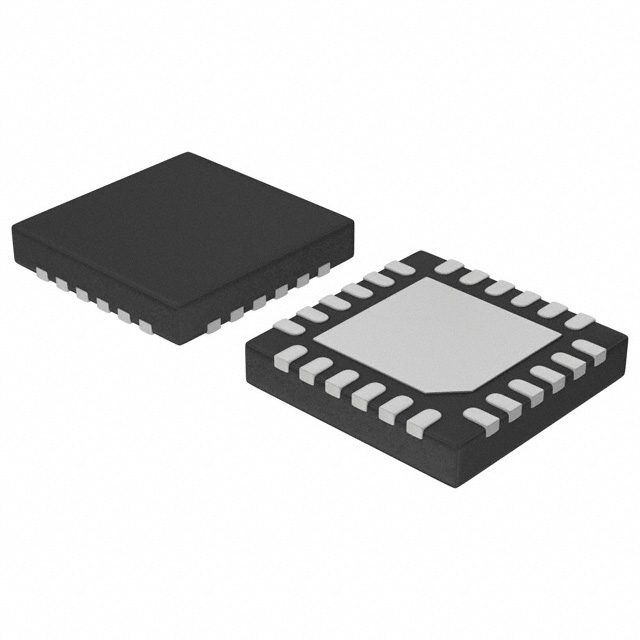

Package / Case	24-VFQFN Exposed Pad
Supplier Device Package	24-QFN (4x4)
Translator Type	Mixed Signal

IC TRANSLTR UNIDIRECTIONAL 24QFN

Part	Package / Case	Channel Type	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Mounting Type	Supplier Device Package	Translator Type	Output Signal	Channels per Circuit	Number of Circuits	Input Signal
ON Semiconductor MC100EP91MNR2G	24-VFQFN Exposed Pad	Unidirectional	85 °C	-40 °C	Differential	Surface Mount	24-QFN (4x4)	Mixed Signal	NECL	3	1	CML, HSTL, LVCMOS, LVDS, LVPECL, LVTTL

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mixed Signal Translator Unidirectional 1 Circuit 3 Channel 24-QFN (4x4)
