794036-2
UnknownTE Connectivity AMP Connectors

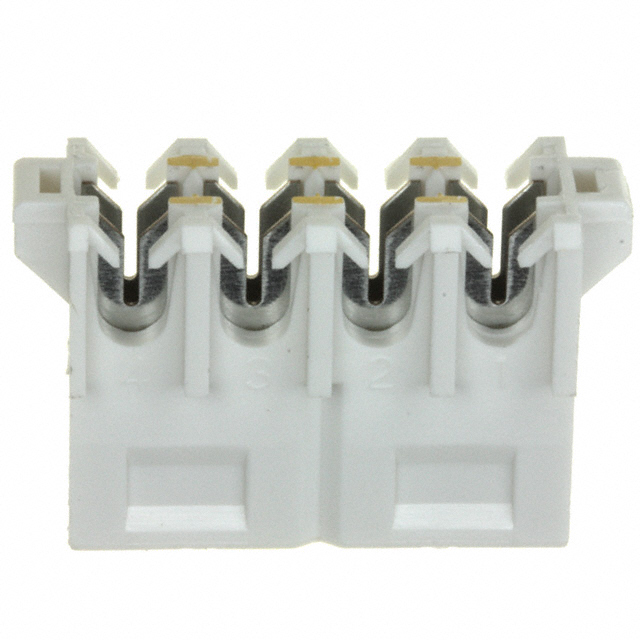

CONN PLUG 4POS IDC 20AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
794036-2
UnknownTE Connectivity AMP Connectors
CONN PLUG 4POS IDC 20AWG TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 794036-2 | 794036 Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Yellow | Red, Yellow |
| Connector Type | Plug | Plug |
| Contact Finish | Tin | Tin |
| Contact Type | Female Socket | Female Socket |
| Features | Feed Through | Feed Through |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Positions | 4 | 4 |
| Number of Rows | 1 | 1 |
| Pitch [x] | 0.2 in | 0.2 in |
| Pitch [x] | 5.08 mm | 5.08 mm |
| Wire Gauge | 20 AWG | 18 - 22 AWG |
| Wire Type | Discrete | Discrete |
794036 Series
CONN PLUG 4POS IDC 18AWG TIN
| Part | Connector Type | Cable Termination | Features | Wire Gauge | Contact Type | Wire Type | Pitch [x] | Pitch [x] | Number of Rows | Number of Positions | Contact Finish | Mounting Type | Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 794036-1 | Plug | IDC | Feed Through | 18 AWG | Female Socket | Discrete | 0.2 in | 5.08 mm | 1 | 4 | Tin | Free Hanging (In-Line) | |
TE Connectivity AMP Connectors 794036-3 | Plug | IDC | Feed Through | 22 AWG | Female Socket | Discrete | 0.2 in | 5.08 mm | 1 | 4 | Tin | Free Hanging (In-Line) | Red |
TE Connectivity AMP Connectors 794036-2 | Plug | IDC | Feed Through | 20 AWG | Female Socket | Discrete | 0.2 in | 5.08 mm | 1 | 4 | Tin | Free Hanging (In-Line) | Yellow |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 1.09 | |
Description
General part information
794036 Series
4 Position Rectangular Plug Connector IDC Tin 20 AWG
Documents
Technical documentation and resources
