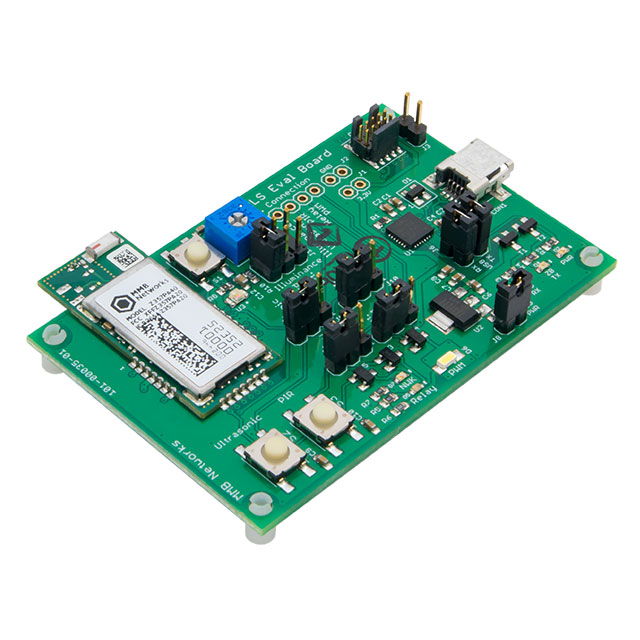

Z357PA40-EV1

Active

MMB Networks

ZIGBEE LIGHTING AND SENSOR KIT

Search across all available documentation for this part.

Active

MMB Networks

ZIGBEE LIGHTING AND SENSOR KIT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	26	$ 99.74

General part information

- Transceiver; 802.15.4 (ZigBee®) 2.4GHz Evaluation Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

RF TXRX MOD 802.15.4 CHIP SMD

Part	Power - Output	Package / Case	Antenna Type	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	Utilized IC / Part	Data Rate	Mounting Type	Protocol	Serial Interfaces	Current - Transmitting	Memory Size [custom]	Memory Size [custom]	RF Family/Standard	Frequency	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensitivity	Frequency [Max]	Frequency [Min]	Voltage - Supply	Current - Transmitting [Max]	Current - Transmitting [Min]	Supplied Contents	Type
MMB Networks Z357PA40-SMT-P-NC-N	20 dBm	Module	Integrated, Chip	32 mA	85 °C	-40 °C	EM357	921.6 kbps	Surface Mount	Zigbee®	SPI, UART	175 mA	12 kB	192 kB	802.15.4	2.4 GHz	2.7 V	3.6 V	-106 dBm
MMB Networks Z357PA40-UFL-P-NC-N	20 dBm	21-SMD Module	Integrated, Chip	32 mA	85 °C	-40 °C	EM357		Surface Mount	Zigbee®	I2C, SPI, UART		12 kB	192 kB	802.15.4				-106 dBm	2.5 GHz	2.4 GHz	3.3 V	235 mA	175 mA
MMB Networks Z357PA40-EV1																2.4 GHz									Board(s)	802.15.4 (ZigBee®), Transceiver
