DKIP Series

Part	Package / Case	Operating Temperature (Min)	Operating Temperature (Max)	Mounting Type	Size / Dimension Length	Size / Dimension Width	Voltage Rating - AC	Voltage Rating - DC	Number of Lines	Current Rating (Max)	Approval Agency	DC Resistance (DCR) (Max)
SCHURTER Inc. DKIP-0329-1002	Nonstandard	-25 °C	100 °C	Chassis Mount	1.89 in	1.89 in	540 V	760 V	3	10 A	UR	15 mOhm
SCHURTER Inc. DKIP-0329-20D6	Nonstandard	-25 °C	100 °C	Chassis Mount	1.89 in	1.89 in	540 V	760 V	3	20 A	UR	5 mOhm
SCHURTER Inc. DKIP-0331-1502	Nonstandard	-25 °C	100 °C	Through Hole	4.724 in	4.724 in	540 V	760 V	3	15 A	UR	13 mOhm

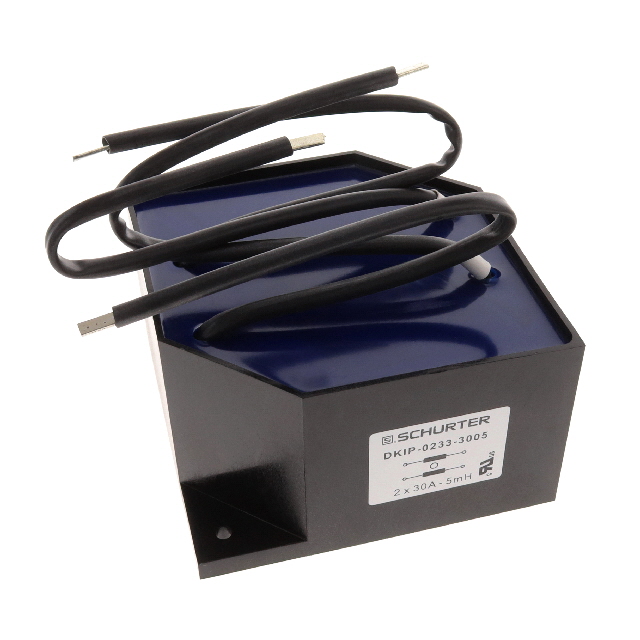

SCHURTER Inc. DKIP-0233-3005	Nonstandard	-25 °C	100 °C	Through Hole	4.724 in	4.724 in	540 V	760 V	2	30 A	UR	12.5 mOhm
SCHURTER Inc. DKIP-0333-3602	Nonstandard	-25 °C	100 °C	Through Hole	4.724 in	4.724 in	540 V	760 V	3	36 A	UR	7.6 mOhm
SCHURTER Inc. DKIP-0231-1505	Nonstandard	-25 °C	100 °C	Through Hole	3.15 in	3.15 in	540 V	760 V	2	15 A	UR	17 mOhm
SCHURTER Inc. DKIP-0233-4003	Nonstandard	-25 °C	100 °C	Through Hole	4.724 in	4.724 in	540 V	760 V	2	40 A	UR	6 mOhm
SCHURTER Inc. DKIP-0229-1005	Nonstandard	-25 °C	100 °C	Chassis Mount	1.89 in	1.89 in	540 V	760 V	2	10 A	UR	18 mOhm
SCHURTER Inc. DKIP-0331-1005	Nonstandard	-25 °C	100 °C	Through Hole	4.724 in	4.724 in	540 V	760 V	3	10 A	UR	32 mOhm
SCHURTER Inc. DKIP-0231-2003	Nonstandard	-25 °C	100 °C	Through Hole	3.15 in	3.15 in	540 V	760 V	2	20 A	UR	10 mOhm
