1411170

Active

Phoenix Contact

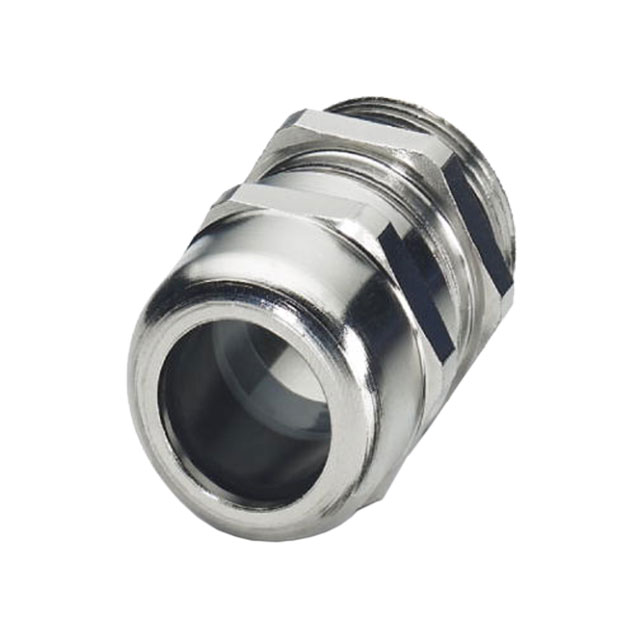

CABLE GLAND 3-6.5MM PG7 BRASS

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 3-6.5MM PG7 BRASS

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG7 Silver

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	1411170	G-INS-PG7 Series

Color	Silver	Gray, Black, Silver
Includes	O-Ring, Seal	Seal, O-Ring
Ingress Protection	IP66, IP68, IP69	IP66/IP68, IP68 - Dust Tight, Waterproof, IP66, IP68, IP69
Material	Brass, Nickel Plated	Polyamide (PA), Nylon, Brass, Nickel Plated
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-40 °C	-40 °C
Outside Cable Diameter (Max) [Max] [diameter]	0.256 "	0.256 "
Outside Cable Diameter (Max) [Max] [diameter]	6.5 mm	6.5 mm
Outside Cable Diameter (Min) [Min] [diameter]	3 mm	3 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.118 in	0.118 in
Thread Length	0.236 in	0.236 - 0.315 in
Thread Length	6 mm	6 - 8 mm
Thread Size	PG7	PG7
Type	Cable Gland	Cable Gland

CABLE GLAND 3-6.5MM PG7 POLYAMID

Part	Includes	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Type	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Ingress Protection
Phoenix Contact 1411140	Seal	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	0.256 "	6.5 mm	PG7	Gray	Polyamide (PA), Nylon	3 mm	0.118 in	IP66/IP68
Phoenix Contact 1424495	Seal	100 °C	-40 °C	8 mm	0.315 in	Cable Gland	0.256 "	6.5 mm	PG7	Black	Polyamide (PA), Nylon	3 mm	0.118 in	IP68 - Dust Tight, Waterproof
Phoenix Contact 1411170	O-Ring, Seal	100 °C	-40 °C	6 mm	0.236 in	Cable Gland	0.256 "	6.5 mm	PG7	Silver	Brass, Nickel Plated	3 mm	0.118 in	IP66, IP68, IP69
