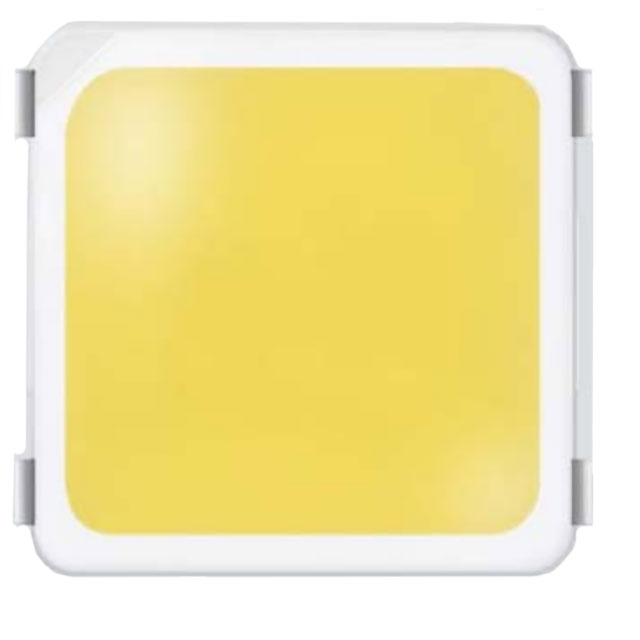

SPMWHT32BMD5YBW0S0

Samsung Semiconductor, Inc.

LED LM302C WARM WHT 2700K 3030

Deep-Dive with AI

Search across all available documentation for this part.

SPMWHT32BMD5YBW0S0

Samsung Semiconductor, Inc.

LED LM302C WARM WHT 2700K 3030

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SPMWHT32BMD5YBW0S0	SPMWHT32 Series

CCT (K)	2700 K	2700 - 6500 K
Color	White, Warm	Cool, White, Neutral, Warm
CRI (Color Rendering Index)	80	70 - 90
Current - Max [Max]	150 mA	150 mA
Current - Test	65 mA	65 mA
Flux @ 25°C, Current - Test	60 lm	50 - 72 lm
Flux @ 25°C, Current - Test	-	70 - 78 lm
Flux @ 25°C, Current - Test	-	58 - 66 lm
Flux @ 25°C, Current - Test [Max]	66 lm	58 - 66 lm
Flux @ 25°C, Current - Test [Min]	54 lm	46 - 54 lm
Height - Seated (Max) [Max] [z]	0.85 mm	0.85 mm
Height - Seated (Max) [Max] [z]	0.033 "	0.033 "
Lumens/Watt @ Current - Test	156 lm/W	130 - 188 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1212	1212
Package / Case	3030 Metric	3030 Metric
Size / Dimension [x]	0.118 in	0.118 in
Size / Dimension [x]	3 mm	3 mm
Size / Dimension [y]	3 mm	3 mm
Size / Dimension [y]	0.118 in	0.118 in
Supplier Device Package	3030	3030
Thermal Resistance of Package [custom]	8 °C/W	8 °C/W
Viewing Angle	115 °	115 °
Voltage - Forward (Vf) (Typ)	5.9 V	5.9 V

SPMWHT32 Series

LED LM302C COOL WHITE 5000K 3030

Part	Viewing Angle	Flux @ 25°C, Current - Test [Min]	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	CRI (Color Rendering Index)	Thermal Resistance of Package [custom]	Color	CCT (K)	Current - Max [Max]	Package / Case	Package / Case	Lumens/Watt @ Current - Test	Mounting Type	Current - Test	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Supplier Device Package	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]
Samsung Semiconductor, Inc. SPMWHT32BMD7YBR0S0	115 °	50 lm	56 lm	62 lm	90	8 °C/W	Cool, White	5000 K	150 mA	1212	3030 Metric	146 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "
Samsung Semiconductor, Inc. SPMWHT32BMD5YBQSS0	115 °		64 lm		80	8 °C/W	Cool, White	5700 K	150 mA	1212	3030 Metric		Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "	70 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT32BMD7YBQSS0	115 °	50 lm	56 lm	62 lm	90	8 °C/W	Cool, White	5700 K	150 mA	1212	3030 Metric	146 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "
Samsung Semiconductor, Inc. SPMWHT32BMD5YBTKS0	115 °		64 lm		80	8 °C/W	Neutral, White	4000 K	150 mA	1212	3030 Metric		Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "	70 lm	58 lm
Samsung Semiconductor, Inc. SPMWHT32BMD3YBVKS0	115 °		68 lm		70	8 °C/W	Warm, White		150 mA	1212	3030 Metric	177 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "	74 lm	62 lm
Samsung Semiconductor, Inc. SPMWHT32BMD3YBVSS0	115 °		68 lm		70	8 °C/W	Warm, White		150 mA	1212	3030 Metric	177 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "	74 lm	62 lm
Samsung Semiconductor, Inc. SPMWHT32BMD7YBPSS0	115 °	50 lm	56 lm	62 lm	90	8 °C/W	Cool, White	6500 K	150 mA	1212	3030 Metric	146 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "
Samsung Semiconductor, Inc. SPMWHT32BMD7YBPKS0	115 °	50 lm	56 lm	62 lm	90	8 °C/W	Cool, White	6500 K	150 mA	1212	3030 Metric	146 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "
Samsung Semiconductor, Inc. SPMWHT32BMD7YBUKS0	115 °	46 lm	52 lm	58 lm	90	8 °C/W	Warm, White	3500 K	150 mA	1212	3030 Metric	136 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "
Samsung Semiconductor, Inc. SPMWHT32BMD7YBWKS0	115 °		50 lm		90	8 °C/W	Warm, White	2700 K	150 mA	1212	3030 Metric	130 lm/W	Surface Mount	65 mA	0.118 in	3 mm	3 mm	0.118 in	5.9 V	3030	0.85 mm	0.033 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.48
		10	$ 0.29
		100	$ 0.17
		1000	$ 0.13
		2000	$ 0.12
	Digi-Reel®	1	$ 0.48
		10	$ 0.29
		100	$ 0.17
		1000	$ 0.13
		2000	$ 0.12
	Tape & Reel (TR)	4000	$ 0.09
		8000	$ 0.08
		12000	$ 0.07
		28000	$ 0.07
		100000	$ 0.06

Description

General part information

SPMWHT32 Series

LED Lighting LM302C White, Warm 2700K 5.9V 65mA 115° 1212 (3030 Metric)

Documents

Technical documentation and resources

No documents available
