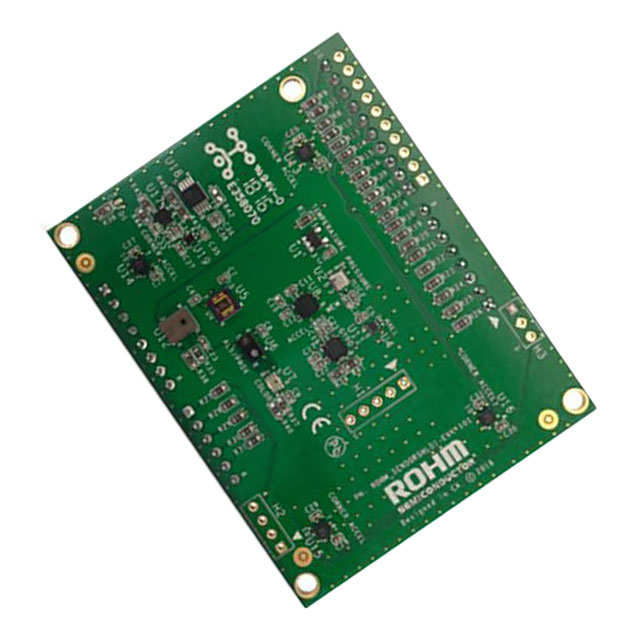

SENSORSHLD1-EVK-101
ActiveRohm Semiconductor
MULTIPLE SENSOR SHIELD GEN 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SENSORSHLD1-EVK-101
ActiveRohm Semiconductor
MULTIPLE SENSOR SHIELD GEN 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SENSORSHLD1-EVK-101 | - Series |
|---|---|---|
| Contents | Board(s) | Board(s) |
| Embedded | - | True |
| Function | Temperature, Barometer, Magnetometer, Gyroscope, Light, Accelerometer | Multiple, Wireless Power Supply/Charging, Temperature, Barometer, Magnetometer, Gyroscope, Light, Accelerometer |
| Interconnect System | Arduino R3 Shield | Arduino R3 Shield |
| Platform | Arduino | SensorShield, Arduino |
| Primary Attributes | - | Transmitter and Receiver |
| Secondary Attributes | - | On-Board LEDs |
| Sensor Type | - | Accelerometer, Temperature, Light, Magnetometer |
| Suggested Programming Environment | Arduino | Arduino |
| Supplied Contents | - | Board(s), Power Supply |
| Type | Sensor | Sensor, Power Management |
| Utilized IC / Part | BH1745, BU52014, BDE0600, BM1383, BM1422, RPR-0521 | BM1422, BD7411, BM1383, RPR-0521, BD1020, BH1745, WE-WPCC, BD57020, ML610Q772, BD57015, BU52014, BDE0600, BU52011, BH1620, BH1721 |
- Series
MULTIPLE SENSOR SHIELD V1
| Part | Utilized IC / Part | Function | Suggested Programming Environment | Contents | Type | Platform | Interconnect System | Primary Attributes | Supplied Contents | Secondary Attributes | Embedded | Sensor Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
Rohm Semiconductor SENSORSHIELD-EVK-001 | BD1020, BD7411, BH1745, BM1383, BM1422, RPR-0521 | Multiple | Arduino | Board(s) | Sensor | SensorShield | Arduino R3 Shield | |||||
Rohm Semiconductor ROHM-760308MP-EVK-001 | BD57015, BD57020, ML610Q772, WE-WPCC | Wireless Power Supply/Charging | Power Management | Transmitter and Receiver | Board(s), Power Supply | On-Board LEDs | ||||||
Rohm Semiconductor SENSORSHLD1-EVK-101 | BDE0600, BH1745, BM1383, BM1422, BU52014, RPR-0521 | Accelerometer, Barometer, Gyroscope, Light, Magnetometer, Temperature | Arduino | Board(s) | Sensor | Arduino | Arduino R3 Shield | |||||
Rohm Semiconductor ROHM-SENSEKIT1-EVK-101 | BDE0600, BH1620, BH1721, BU52011 | Board(s) | Accelerometer, Light, Magnetometer, Temperature |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 95.22 | |
Description
General part information
- Series
BDE0600, BH1745, BM1383, BM1422, BU52014, RPR-0521 Accelerometer, Barometer, Gyroscope, Light, Magnetometer, Temperature Sensor Arduino Platform Evaluation Expansion Board
Documents
Technical documentation and resources
