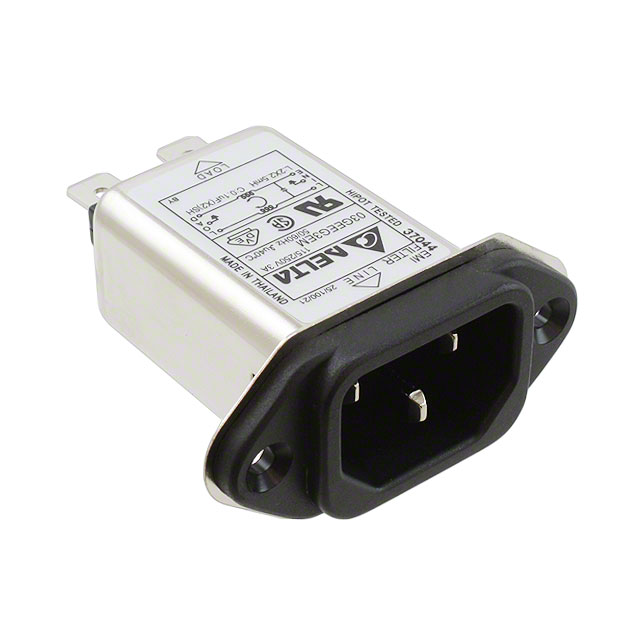

03GEEG3EM

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

Delta Electronics

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	03GEEG3EM	03GEEG Series

Accomodates a Fuse	False	False
Approval Agency	UL, VDE, CSA	UL, VDE, CSA
Connector Style	IEC 320-C14	IEC 320-C14
Connector Type	Male Blades, Receptacle	Male Blades, Receptacle
Current Rating - Appliance Inlet	3 A	3 A
Current Rating - Filter	3 A	3 A
Features	-	Bleed Resistor
Filter Type	Filtered (EMI, RFI) - Commercial, Medical	Filtered (EMI, RFI) - Commercial, Filtered (EMI, RFI) - Commercial, Medical
Mounting Type	Panel Mount, Flange	Panel Mount, Flange
Panel Cutout Dimensions [x]	28.45 mm	28.45 mm
Panel Cutout Dimensions [y]	21.6 mm	21.6 mm
Termination	Quick Connect	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC	250 VAC
Voltage Rating - Appliance Inlet [Min]	115 VAC	115 VAC

IEC CONNECTOR WITH INBUILT EMI PROTECTION, MAXIMUM CURRENT OF 3 A, MAXIMUM VOLTAGE OF 250 VAC, AND AN OPERATING FREQUENCY OF 50/60 HZ

Part	Termination	Filter Type	Connector Type	Current Rating - Filter	Connector Style	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet [Min]	Voltage Rating - Appliance Inlet [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Approval Agency	Mounting Type	Features
Delta Electronics 03GEEG3E	Quick Connect	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	3 A	IEC 320-C14	3 A	115 VAC	250 VAC	21.6 mm	28.45 mm	CSA, UL, VDE	Flange, Panel Mount
Delta Electronics 03GEEG3QM	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	Male Blades, Receptacle	3 A	IEC 320-C14	3 A	115 VAC	250 VAC	21.6 mm	28.45 mm	CSA, UL, VDE	Flange, Panel Mount
Delta Electronics 03GEEG3EM	Quick Connect	Filtered (EMI, RFI) - Commercial, Medical	Male Blades, Receptacle	3 A	IEC 320-C14	3 A	115 VAC	250 VAC	21.6 mm	28.45 mm	CSA, UL, VDE	Flange, Panel Mount
Delta Electronics 03GEEG3E-R	Quick Connect	Filtered (EMI, RFI) - Commercial	Male Blades, Receptacle	3 A	IEC 320-C14	3 A	115 VAC	250 VAC	21.6 mm	28.45 mm	CSA, UL, VDE	Flange, Panel Mount	Bleed Resistor

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	270	$ 4.21

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
