Description
General part information

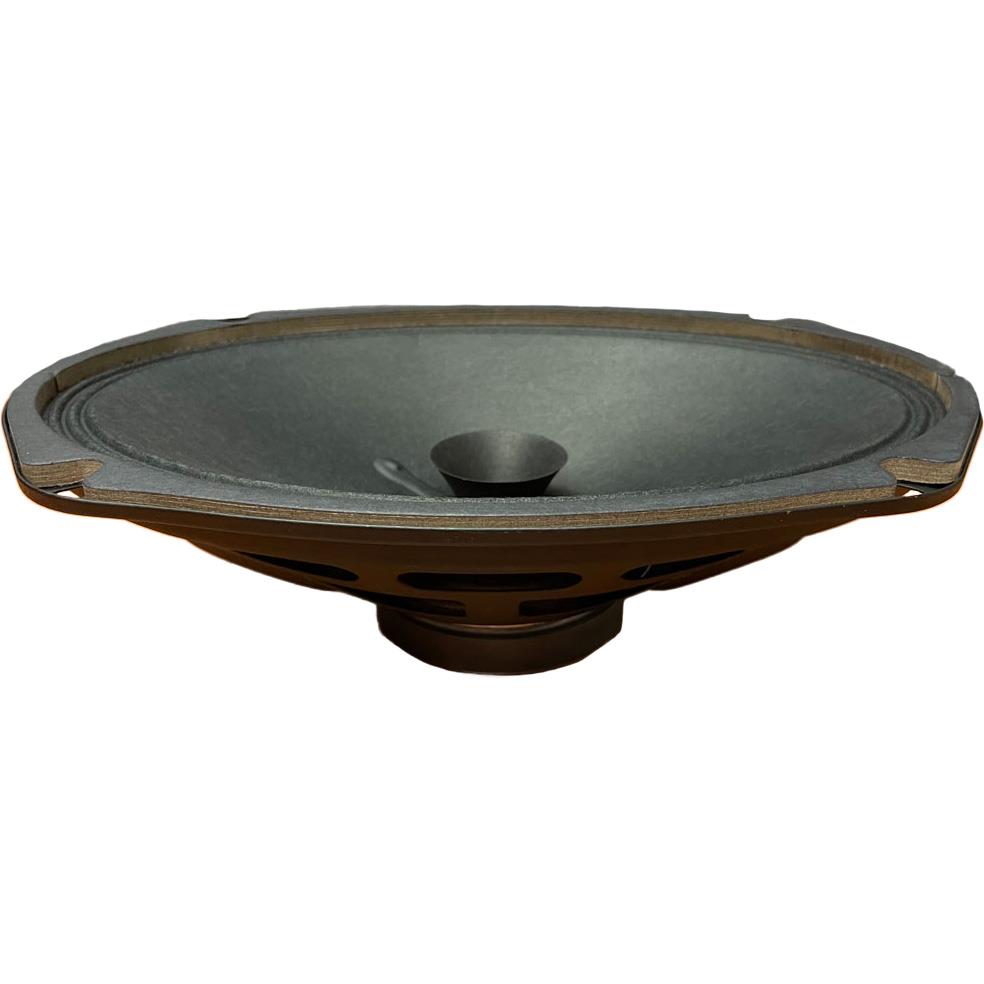

D0906004FP128AKR
4 Ohms General Purpose Speaker 6 W 100 Hz ~ 7 kHz Top Oval, Rectangular Frame
Technical Specifications
Parameters and characteristics for this part
| Specification | D0906004FP128AKR |
|---|---|
| Efficiency - dBA | 90 dBA |
| Efficiency - Testing | 1 W |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 100 Hz |
| Frequency Range (Max) | 7 kHz |
| Frequency Range (Min) | 100 Hz |
| Height - Seated (Max) | 2.73 in |
| Impedance | 4 Ohms |
| Material - Magnet | Ferrite |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Port Location | Top |
| Power - Max | 10 VA |
| Power - Rated | 6 W |
| Shape | Oval, Rectangular Frame |
| Size / Dimension Length | 9.567 in |
| Size / Dimension Width | 6.476 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
