1690480
ObsoletePhoenix Contact

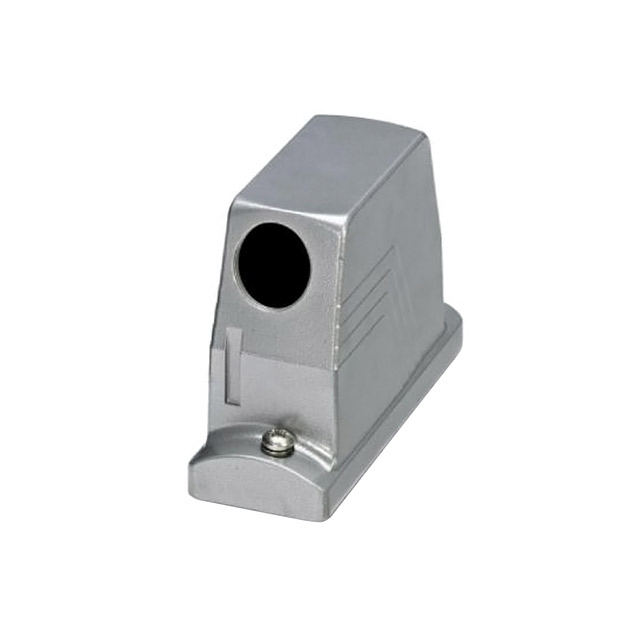

CONN HOOD SIDE ENTRY SZB24 M40
1690480
ObsoletePhoenix Contact
CONN HOOD SIDE ENTRY SZB24 M40
Description
General part information
1690480
Hood Connector Side Entry M40 B24 IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Technical Specifications
Parameters and characteristics for this part
| Specification | 1690480 |
|---|---|
| Connector Type | Hood |
| Housing Color | Gray |
| Housing Finish | Powder Coated |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection Description | Dust Tight, Water Resistant, Waterproof |
| Ingress Protection IP Rating | IP69K, IP68, IP66 |
| Lock Location | Screw Locks on Hood |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Size | B24 |
| Size / Dimension Height | 3.937 in |
| Size / Dimension Length | 5.984 in |
| Size / Dimension Width | 2.244 in |
| Style | Side Entry |
| Thread Size | M40 |
