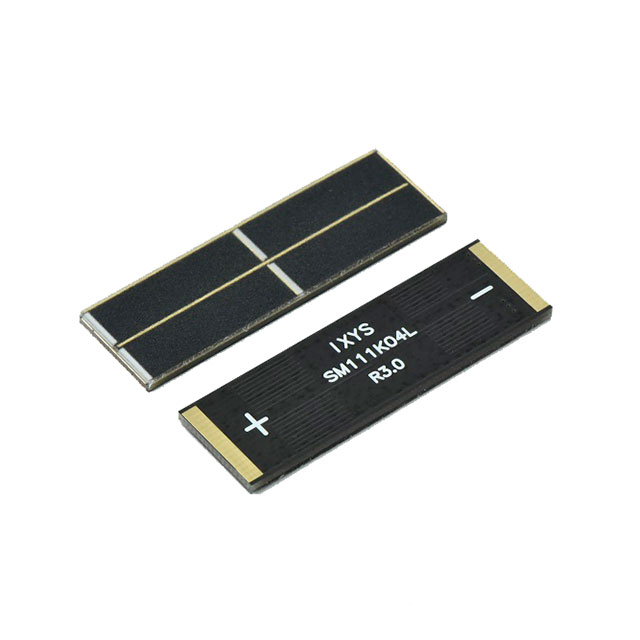

SM111K04L

Active

ANYSOLAR Ltd

MONOCRYSTL SOLAR CELL 98MW 2.76V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYSTL SOLAR CELL 98MW 2.76V

Technical Specifications

Parameters and characteristics commom to parts in this series

MONOCRYST SOLAR CELL 245MW 6.91V

Part	Current @ Pmpp	Package / Case	Type	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts) - Max [Max]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage @ Pmpp	Current - Short Circuit (Isc)	Voltage - Open Circuit	Voltage @ Pmpp [custom]
ANYSOLAR Ltd SM111K10L	43.9 mA	Cells	Monocrystalline	90 °C	-40 °C	245 mW	35 mm	0.08 in	42 mm	2 mm	1.65 in	1.38 "	5.58 V	46.7 mA
ANYSOLAR Ltd SM111K04L	43.9 mA	Cells	Monocrystalline	90 °C	-40 °C	98 mW	14 mm	0.08 in	43 mm	2 mm	1.69 in	0.55 in	2.23 V	46.7 mA	2.76 V
ANYSOLAR Ltd SM111K08L	43.9 mA	Cells	Monocrystalline	90 °C	-40 °C	196 mW	14 mm	0.08 in	87 mm	2 mm	3.43 in	0.55 in		46.7 mA	5.53 V	4.46 V
ANYSOLAR Ltd SM111K06L	43.9 mA	Cells	Monocrystalline	90 °C	-40 °C	147 mW	21 mm	0.09 "	42 mm	2.3 mm	1.65 in	0.83 "	3.35 V	46.7 mA	4.15 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 98 mW 2.76 V

Technical documentation and resources

No documents available
