1241.6697.1122000

Active

SCHURTER Inc.

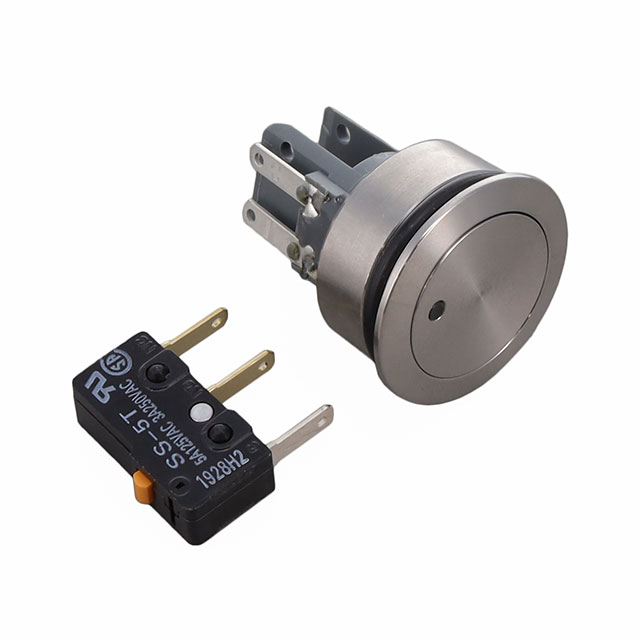

SWITCH PUSHBUTTON SPDT 5A 125V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH PUSHBUTTON SPDT 5A 125V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1241.6697.1122000	1241.6697 Series

Actuator Marking	No Marking	No Marking
Actuator Type	Flush, Button, Round	Flush, Button, Round
Circuit	SPDT	SPDT
Color - Actuator/Cap	Silver	Silver
Current Rating (Amps)	5 A	5 A
Electrical Life	200000 Cycles	200000 Cycles
Illumination Type, Color	LED, Green	LED, Green, Red
Illumination Voltage (Nominal)	2.1 VDC	1.9 - 2.1 VDC
Ingress Protection	IP40	IP40
Mechanical Life	1500000 Cycles	1500000 Cycles
Mounting Type	Panel Mount, Front	Panel Mount, Front
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Panel Cutout Dimensions [diameter]	22.3 mm	22.3 mm
Switch Function	On-Mom	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)	Quick Connect - 0.110" (2.8mm)
Type	Anti-Vandal, Illuminated	Anti-Vandal, Illuminated
Voltage Rating - AC	125 V	125 V

SWITCH PUSHBUTTON SPDT 5A 125V

Part	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Actuator Type	Illumination Type, Color	Ingress Protection	Illumination Voltage (Nominal)	Termination Style	Color - Actuator/Cap	Panel Cutout Dimensions [diameter]	Circuit	Electrical Life	Mounting Type	Actuator Marking	Mechanical Life	Voltage Rating - AC	Switch Function
SCHURTER Inc. 1241.6697.1122000	Anti-Vandal, Illuminated	-25 °C	85 °C	5 A	Button, Flush, Round	Green, LED	IP40	2.1 VDC	Quick Connect - 0.110" (2.8mm)	Silver	22.3 mm	SPDT	200000 Cycles	Panel Mount, Front	No Marking	1500000 Cycles	125 V	On-Mom
SCHURTER Inc. 1241.6697.1121000	Anti-Vandal, Illuminated	-25 °C	85 °C	5 A	Button, Flush, Round	LED, Red	IP40	1.9 VDC	Quick Connect - 0.110" (2.8mm)	Silver	22.3 mm	SPDT	200000 Cycles	Panel Mount, Front	No Marking	1500000 Cycles	125 V	On-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 33.66

General part information

Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
