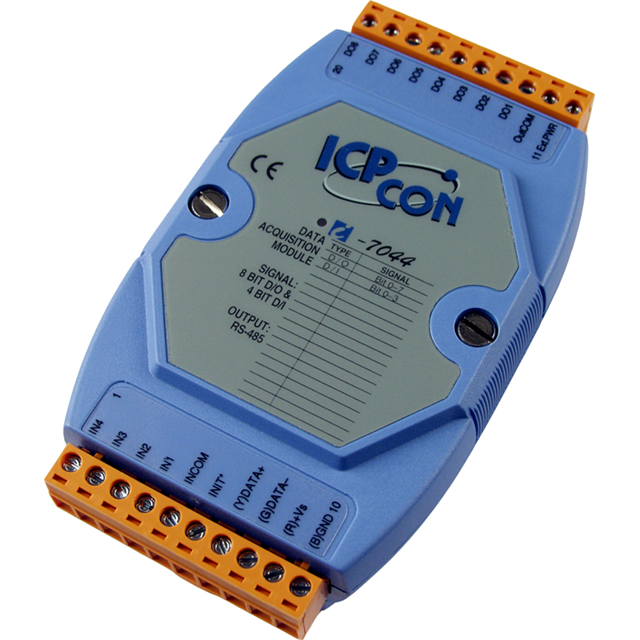

I-7044

Active

ICP DAS USA INC

I/O MOD 4 DIG 8 DIG 10-30V

Search across all available documentation for this part.

Active

ICP DAS USA INC

I/O MOD 4 DIG 8 DIG 10-30V

Technical Specifications

Parameters and characteristics for this part

Specification	I-7044

Approval Agency	CE
Mounting Type	DIN Rail
Number of Inputs and Type [custom]	Digital
Number of Inputs and Type [custom]	4
Number of Outputs and Type	8
Number of Outputs and Type	Digital
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Termination Style	Screw Terminal
Type	Input, Output (I/O) Module
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Type	Approval Agency	Number of Inputs and Type [custom]	Number of Inputs and Type [custom]	Number of Outputs and Type	Number of Outputs and Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Number of Outputs and Type [custom]	Number of Outputs and Type [custom]	Number of Inputs and Type [custom]	Number of Inputs and Type	Number of Inputs and Type
ICP DAS USA INC I-7080BD	Input Output (I/O) Module	CE	Digital	2	Digital	2	Screw Terminal	-25 °C	75 ░C	24 V	30 VDC	DIN Rail
ICP DAS USA INC I-7065BD	Input Output (I/O) Module	CE	Digital	4			Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail	Solid State	5
ICP DAS USA INC I-7083D	Input Module	CE					Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail
ICP DAS USA INC I-7060	Input Output (I/O) Module	CE	Digital	4			Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail	Relay	4
ICP DAS USA INC I-7060D	Input Output (I/O) Module	CE	Digital	4			Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail	Relay	4
ICP DAS USA INC I-7012FD	Input Module	CE	Analog				Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail			1
ICP DAS USA INC I-7058_FG	Input Module	CE	Digital	8			Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail
ICP DAS USA INC I-7017RC	Input Module	CE					Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail				8	Analog
ICP DAS USA INC I-7083BD	Input Module	CE					Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail
ICP DAS USA INC I-7063BD	Input Output (I/O) Module	CE	Digital	8	Solid State	3	Screw Terminal	-25 °C	75 ░C	10 VDC	30 VDC	DIN Rail

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 189.00

General part information

Input, Output (I/O) Module DIN Rail 10 ~ 30VDC

Technical documentation and resources

No documents available
