ActiveTE Connectivity Corcom Filters

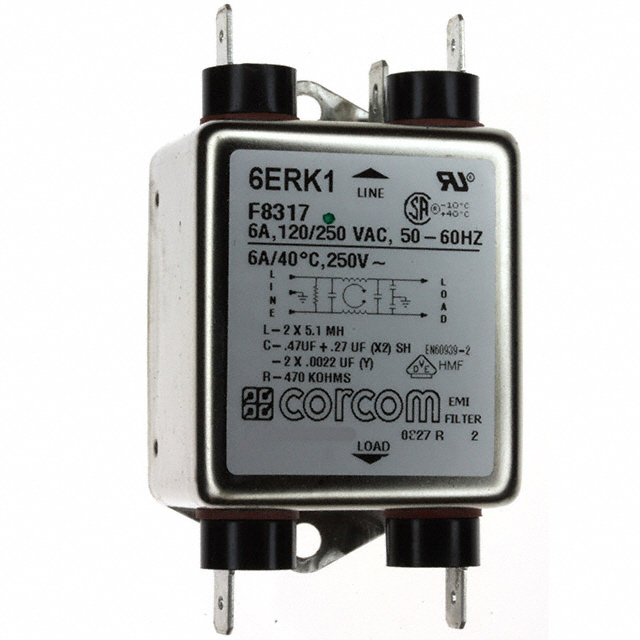

LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Search across all available documentation for this part.
1-1609036-8
ActiveTE Connectivity Corcom Filters
LINE FILTER 250VAC 6A CHASSIS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1-1609036-8 | 1609036 Series |
|---|---|---|
| Applications | General Purpose | General Purpose |
| Approval Agency | VDE, CSA, UR | VDE, CSA, UR |
| Configuration | Single Stage | Single Stage |
| Current | 6 A | 3 - 6 A |
| Filter Type | Single Phase | Single Phase |
| Frequency - Operating [Max] | 60 Hz | 60 Hz |
| Frequency - Operating [Min] | 50 Hz | 50 Hz |
| Inductance | 5.1 mH | 5.1 - 7 mH |
| Mounting Type | Chassis Mount | Chassis Mount |
| Operating Temperature [Max] | 40 °C | 40 °C |
| Operating Temperature [Min] | -10 °C | -10 °C |
| Termination Style | Quick Connect | Quick Connect |
| Voltage - Rated AC | 250 V | 250 V |
1609036 Series
LINE FILTER 250VAC 6A CHASSIS
| Part | Mounting Type | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Approval Agency | Filter Type | Frequency - Operating [Max] | Frequency - Operating [Min] | Voltage - Rated AC | Configuration | Inductance | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Corcom Filters 1-1609036-8 | Chassis Mount | General Purpose | -10 °C | 40 °C | Quick Connect | CSA, UR, VDE | Single Phase | 60 Hz | 50 Hz | 250 V | Single Stage | 5.1 mH | 6 A |
TE Connectivity Corcom Filters 1-1609036-7 | Chassis Mount | General Purpose | -10 °C | 40 °C | Quick Connect | CSA, UR, VDE | Single Phase | 60 Hz | 50 Hz | 250 V | Single Stage | 7 mH | 3 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 31.58 | |
| 18 | $ 30.56 | |||
| 27 | $ 29.54 | |||
| 54 | $ 28.52 | |||
| 108 | $ 25.46 | |||
| 252 | $ 25.21 | |||
Description
General part information
1609036 Series
Single Phase EMC/EMI Line Filter 6 A 250V 50/60Hz Single Stage Quick Connect
Documents
Technical documentation and resources
