Specification	2661801102

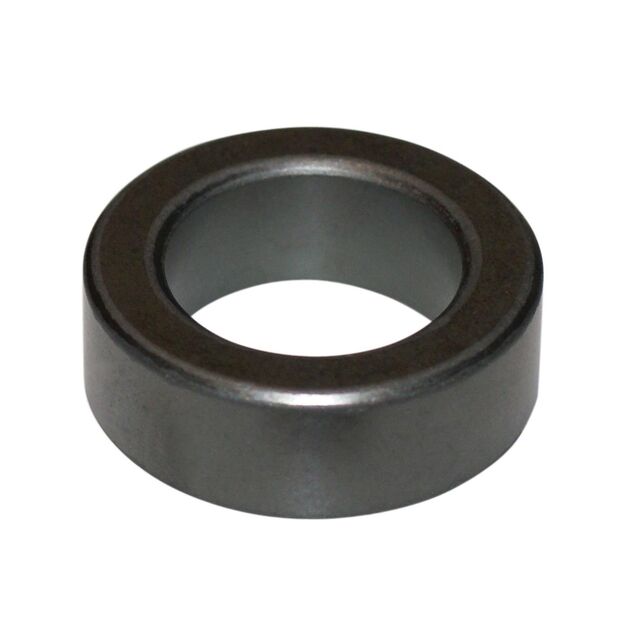

Core Type	Toroid
Diameter	0.49 in
Effective Area (Ae)	15 mm²
Effective Length (le)	31.2 mm
Effective Magnetic Volume (Ve)	466 mm³
Finish	Uncoated
Gap	Ungapped
Height	0.24 in
Material	61

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Technical documentation and resources
