Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 105.00 | |
| 20 | $ 99.75 | |||
General part information
Process, Temperature Meter LED - Red Characters Display Panel Mount
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 8104220100 |
|---|---|
| Display Type | LED - Red Characters |
| Features | USB Configurable |
| Ingress Protection [custom] | IP65 |
| Ingress Protection [custom] | IP20 |
| Measuring Range [Max] | 20 mA, 10 V, 1800 °C |
| Measuring Range [Min] | -270 °C, 0 A, 0 V |
| Measuring Type | RTD, Thermocouple, Process |
| Number of Characters Per Row | 4 |
| Number of Characters Per Row | 4 |
| Output Type | Relay (2) |
| Panel Cutout Dimensions [x] | 45.5 mm |
| Panel Cutout Dimensions [y] | 45.5 mm |
| Termination Style | Screw Terminal |
| Type | Temperature Meter, Process |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 100 VAC |

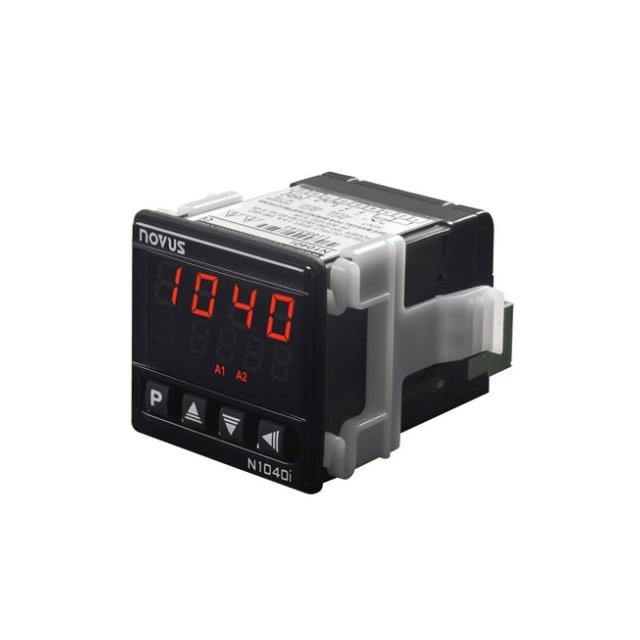

N1040I-RR UNIVERSAL INDICATOR, 2
| Part | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Number of Characters Per Row | Number of Characters Per Row | Voltage - Supply [Max] | Voltage - Supply [Min] | Measuring Range [Min] | Measuring Range [Max] | Ingress Protection [custom] | Ingress Protection [custom] | Display Type | Output Type | Type | Measuring Type | Termination Style | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Novus Automation 8104220100 | 45.5 mm | 45.5 mm | 4 | 4 | 240 VAC | 100 VAC | -270 °C, 0 A, 0 V | 10 V, 20 mA, 1800 °C | IP65 | IP20 | LED - Red Characters | Relay (2) | Process, Temperature Meter | Process, RTD, Thermocouple | Screw Terminal | USB Configurable |
