35F-35F50+
ActiveMINI-CIRCUITS
ADAPTER 3.5MM-F/3.5MM-F ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35F-35F50+
ActiveMINI-CIRCUITS
ADAPTER 3.5MM-F/3.5MM-F ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35F-35F50+ | - Series |
|---|---|---|
| 1st Connector | - | SMA Plug, 2.92mm Plug |
| 1st Connector Mounting Type | - | Free Hanging (In-Line) |
| 1st Contact Gender | - | Male |
| 2nd Connector | - | SMA Plug, N-Type Plug |
| 2nd Connector | - | 2.92 mm |
| 2nd Connector Mounting Type | - | Free Hanging (In-Line) |
| 2nd Contact Gender | - | Male |
| Adapter Series | - | SMA to SMA, N to N, BNC to BNC, BNC to N, SMA to RP-SMA, SMA to 3.5mm |
| Adapter Series [Max] | 3.5 mm | 2.4 - 3.5 mm |
| Adapter Series [Min] | 3.5 mm | 1.85 - 3.5 mm |
| Adapter Type | Jack to Jack | Plug to Jack, Jack to Jack, Plug to Plug |
| Attenuation Value | - | 0 - 15 dB |
| Attenuation Value | - | 4 - 20 dB |
| Body Material | Stainless Steel | Stainless Steel, Brass |
| Center Gender | Female to Female | Female to Female, Male to Male |
| Color | - | Blue |
| Connector Style | - | SMA, N Type, BNC |
| Connector Style | - | 2.92 mm |
| Connector Type | - | Female Socket, Jack, Male Pin, Plug |
| Conversion Type | Same Series | Same Series, Between Series |
| Convert From (Adapter End) | 3.5mm Jack, Female Socket | SMA Plug, Male Pin, Female Socket, SMA Jack, OS-2.9, Jack, Female Socket, N Jack, 3.5mm Jack, Female Socket, 3.5mm Plug, Male Pin, N Plug, Male Pin, BNC Plug, Male Pin, 1.85mm Jack, Female Socket, RP-SMA Plug, Plug, Male Pin |
| Convert From (Adapter End) | - | 1.85 - 2.92 mm |
| Convert To (Adapter End) | 3.5mm Jack, Female Socket | SMA Jack, Female Socket, N Jack, OS-2.9 Jack, Female Socket, 3.5mm Jack, BNC Jack, SMA Plug, Male Pin, N Plug, 2.92mm (OS-2.9) Plug, Male Pin, 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Convert To (Adapter End) | - | 2.4 - 2.92 mm |
| Fastening Type | - | Bayonet Lock, Threaded |
| Features | - | Chain |
| Frequency - Max [Max] | 18 GHz | 2 - 6000 GHz |
| Frequency Range | - | 8 GHz |
| Frequency Range | - | 0 Hz |
| Impedance | 50 Ohms | 50 Ohms |
| Insertion Loss | - | 0.03 - 0.5 dB |
| Length | - | 91.44 - 1200 cm |
| Length | - | 24 - 48 in |
| Length | - | 4 ft |
| Mating Cycles | - | 500 |
| Mounting Feature | - | Flange, Bulkhead |
| Mounting Type | Free Hanging (In-Line) | Free Hanging, Cap, Free Hanging (In-Line), Right Angle |
| Operating Temperature [Max] | 100 °C | 28 - 125 °C |
| Operating Temperature [Min] | -55 °C | -65 - 18 °C |
| Overall Impedance | - | 50 Ohms |
| Package / Case | - | 4-SMD, No Lead |
| Power (Watts) | - | 0.5 W |
| Style | Straight | Straight, Right Angle, SMA to SMA, SMA to N-Type |
| Style | - | 2.92 mm |
| Style | - | 2.92 mm |
- Series
TERM / SMA-F / 18GHZ 1W ROHS
...
| Part | Connector Style | Mounting Type | Frequency - Max [Max] | Impedance | Connector Type | Frequency Range [Max] | Frequency Range [Min] | Power (Watts) | Package / Case | Body Material | Conversion Type | Adapter Series | Convert From (Adapter End) | Style | Adapter Type | Convert To (Adapter End) | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Center Gender | Adapter Series [Max] | Adapter Series [Min] | Convert To (Adapter End) | Convert From (Adapter End) | Insertion Loss | Attenuation Value [custom] | Fastening Type | Mating Cycles | Features | Length | Length | Color | 1st Contact Gender | Overall Impedance | 2nd Connector | 2nd Contact Gender | 1st Connector Mounting Type | 1st Connector | 2nd Connector Mounting Type | Attenuation Value | Connector Style | 2nd Connector | Style [Min] | Style [Max] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MINI-CIRCUITS ANNEF-50+ | SMA | Cap, Free Hanging | 18 GHz | 50 Ohms | Female Socket, Jack | ||||||||||||||||||||||||||||||||||||||||
MINI-CIRCUITS GAT-5+ | 50 Ohms | 8 GHz | 0 Hz | 0.5 W | 4-SMD, No Lead | ||||||||||||||||||||||||||||||||||||||||
MINI-CIRCUITS BLK-18-S+ | Free Hanging (In-Line) | 18 GHz | 50 Ohms | Stainless Steel | Same Series | SMA to SMA | SMA Plug, Male Pin | Straight | Plug to Jack | Female Socket, SMA Jack | 100 °C | -55 °C | |||||||||||||||||||||||||||||||||
MINI-CIRCUITS NFFL-SF50+ | 18 GHz | 50 Ohms | Between Series | Female Socket, SMA Jack | Straight | Jack to Jack | Female Socket, N Jack | 100 °C | -45 °C | Flange | Female to Female | ||||||||||||||||||||||||||||||||||
MINI-CIRCUITS NF-SM50+ | Free Hanging (In-Line) | 18 GHz | 50 Ohms | Stainless Steel | Between Series | SMA Plug, Male Pin | Straight | Plug to Jack | Female Socket, N Jack | 100 °C | -55 °C | ||||||||||||||||||||||||||||||||||
MINI-CIRCUITS KFPM-KF50+ | 40 GHz | 50 Ohms | Stainless Steel | Same Series | Jack, Female Socket, OS-2.9 | Straight | Jack to Jack | OS-2.9 Jack, Female Socket | 100 °C | -55 °C | Bulkhead | Female to Female | 2.92 mm | 2.92 mm | 2.92 mm | 2.92 mm | 0.12 dB | ||||||||||||||||||||||||||||
MINI-CIRCUITS ANNE-50+ | SMA | Cap, Free Hanging | 18 GHz | 50 Ohms | Male Pin, Plug | ||||||||||||||||||||||||||||||||||||||||
MINI-CIRCUITS NFFL-NF50+ | 9 GHz | 50 Ohms | Stainless Steel | Same Series | N to N | Female Socket, N Jack | Straight | Jack to Jack | Female Socket, N Jack | 100 °C | -55 °C | Flange | Female to Female | 0.05 dB | |||||||||||||||||||||||||||||||
MINI-CIRCUITS 35F-35F50+ | Free Hanging (In-Line) | 18 GHz | 50 Ohms | Stainless Steel | Same Series | 3.5mm Jack, Female Socket | Straight | Jack to Jack | 3.5mm Jack, Female Socket | 100 °C | -55 °C | Female to Female | 3.5 mm | 3.5 mm | |||||||||||||||||||||||||||||||
MINI-CIRCUITS BLK-18W-S+ | Free Hanging (In-Line) | 18 GHz | 50 Ohms | Same Series | SMA to SMA | SMA Plug, Male Pin | Straight | Plug to Jack | Female Socket, SMA Jack | 125 °C | -65 ░C |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 98.59 | |
| 10 | $ 94.03 | |||
| 25 | $ 92.52 | |||
| 50 | $ 92.08 | |||
Description
General part information
- Series

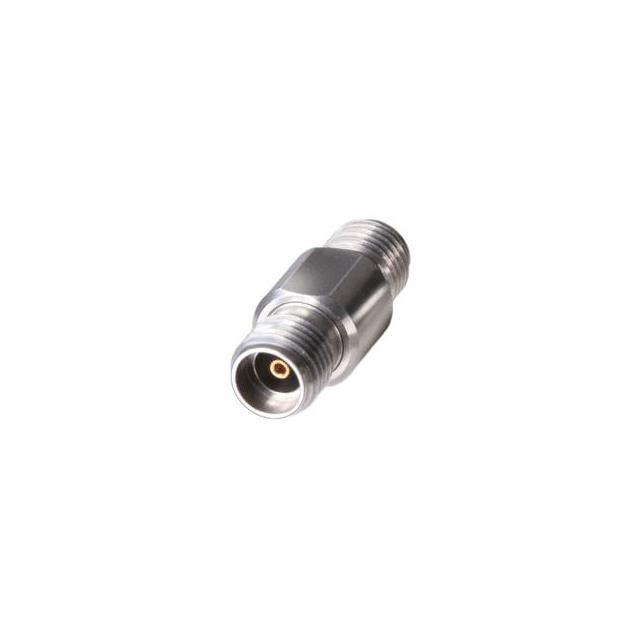

Adapter Coaxial Connector 3.5mm Jack, Female Socket To 3.5mm Jack, Female Socket 50 Ohms
