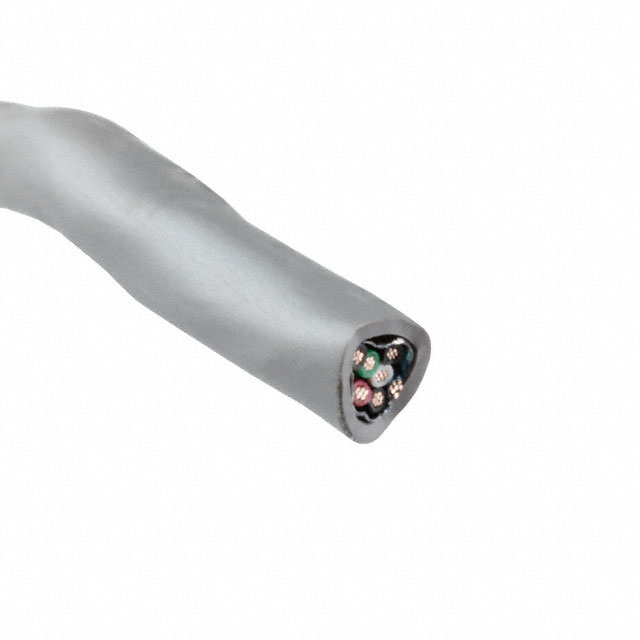

1304C SL001

Active

ALPHA WIRE

MULTI-PAIR 6COND 22AWG

Search across all available documentation for this part.

Active

ALPHA WIRE

MULTI-PAIR 6COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	1304C SL001

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Jacket (Insulation) Diameter [diameter]	5.74 mm
Jacket (Insulation) Diameter [diameter]	0.226 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Slate
Length	1000 ft
Length	304.8 m
Number of Conductors	6
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 6COND 22AWG

Part	Conductor Material	Length	Length	Cable Type	Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Conductor Insulation	Wire Gauge	Jacket (Insulation) Material	Number of Conductors	Usage	Jacket Color	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]
ALPHA WIRE 1304C SL001	Copper, Tinned	1000 ft	304.8 m	Multi-Pair	300 V	-20 C	80 C	Solid	Poly-Vinyl Chloride (PVC)	22 AWG	Poly-Vinyl Chloride (PVC)	6	Communication, Control	Slate	5.74 mm	0.226 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 0.87

General part information

6 (3 Pair Twisted) Conductor Multi-Pair Cable Slate 22 AWG 1000.0' (304.8m)
