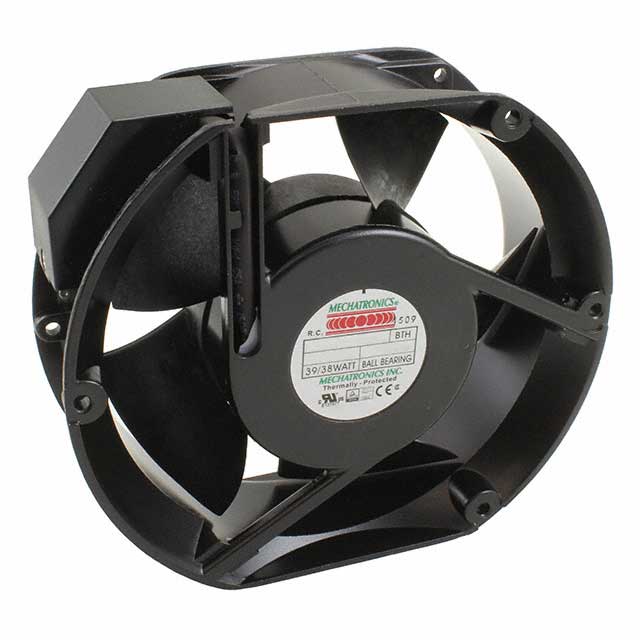

UF15KC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 172X150X55MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF15KC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 172X150X55MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF15KC12-BTHR |
|---|---|
| Air Flow | 293 CFM |
| Air Flow | 8.2 m³/min |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.34 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 60 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 38 W |
| RPM | 3400 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 150 mm |
| Static Pressure | 0.9 in H2O |
| Static Pressure | 224.2 Pa |
| Termination | 3 Terminals |
| Voltage - Rated | 115 VAC |
| Weight | 1 kg |
| Weight | 2.3 lbs |
| Width [y] | 55 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 50.17 | |
| 20 | $ 45.82 | |||
| 40 | $ 44.08 | |||
| 60 | $ 41.18 | |||
| 100 | $ 37.99 | |||
| 260 | $ 37.41 | |||
Description
General part information
UF15KC12-BTHR
Fan Tubeaxial 115VAC Rectangular/Rounded - 172mm L x 150mm H Ball 293.0 CFM (8.20m³/min) 3 Terminals
