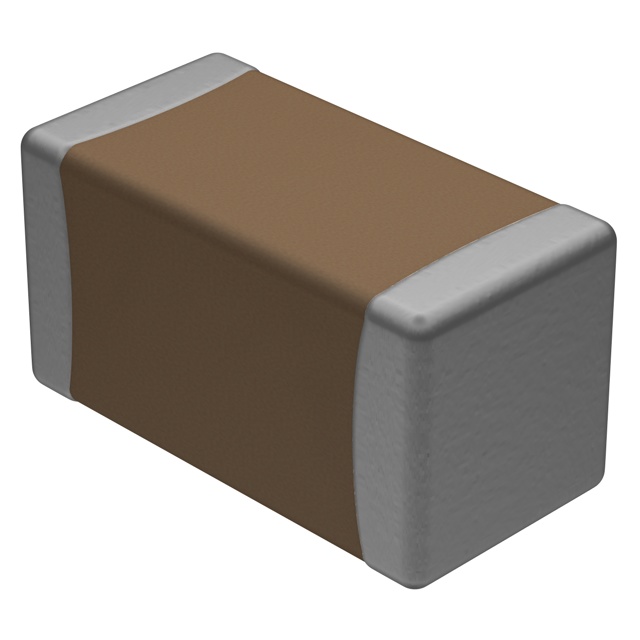

VJ1206A3R3CXAMP
ActiveVishay General Semiconductor - Diodes Division
CAP CER 3.3PF 50V C0G/NP0 1206
Deep-Dive with AI
Search across all available documentation for this part.
VJ1206A3R3CXAMP
ActiveVishay General Semiconductor - Diodes Division
CAP CER 3.3PF 50V C0G/NP0 1206
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VJ1206A3R3CXAMP |
|---|---|
| Applications | General Purpose |
| Capacitance | 3.3 pF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 0.126 " |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 1.7 mm |
| Thickness (Max) [Max] | 0.067 in |
| Tolerance | 0.25 pF |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10000 | $ 0.24 | |
Description
General part information
VJ1206A3R3CXAMP
3.3 pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 1206 (3216 Metric)
Documents
Technical documentation and resources
