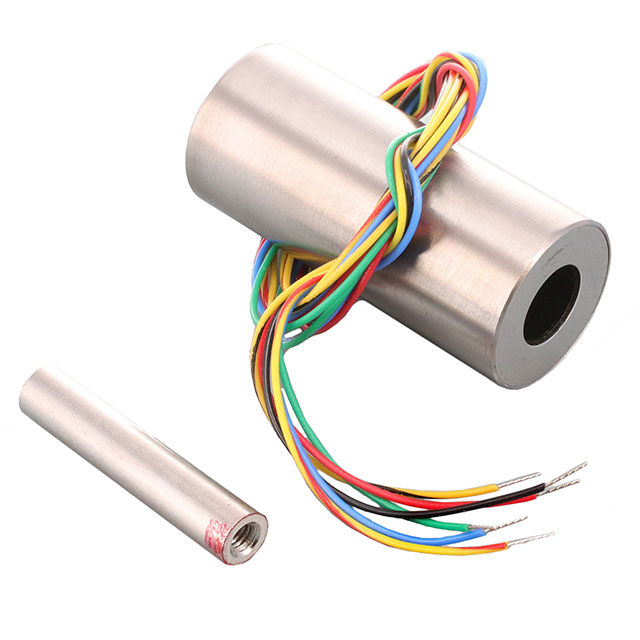

02560390-000

Active

TE Connectivity Measurement Specialties

GENERAL PURPOSE LVDT HR

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

GENERAL PURPOSE LVDT HR

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	02560390-000	0256 Series

	-	-
Actuator Type	-	Round Shaft
Features	High Reliability	General Purpose, High Reliability
For Measuring	-	Rotary Position
Linear Range	2.54 mm	0.13 - 101.6 mm
Linearity	-	0.25 %
Operating Temperature [Max]	150 °C	70 - 150 °C
Operating Temperature [Min]	-55 °C	-55 - 0 °C
Output	-	Analog Voltage
Output Signal	-	Clockwise Increase
Rotation Angle - Electrical, Mechanical	-	60 °
Size / Dimension	46 mm	9.5 - 414.5 mm
Size / Dimension	-	20.3 - 282.4 mm
Size / Dimension	-	254 mm
Size / Dimension	-	142.2 mm
Technology	-	Inductive
Termination Style	-	Wire Leads
Voltage - Supply	-	15 V

GENERAL PURPOSE LVDT HR

Part	Linear Range	Size / Dimension	Features	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Measurement Specialties 02560405-000	0.13 mm	9.5 mm	General Purpose	-55 °C	150 °C
TE Connectivity Measurement Specialties 02560967-001
TE Connectivity Measurement Specialties 02560399-000	101.6 mm	397.3 mm	General Purpose	-55 °C	150 °C
TE Connectivity Measurement Specialties 02560569-000
TE Connectivity Measurement Specialties 02560442-000	6 mm	104.1 mm		0 °C	70 °C
TE Connectivity Measurement Specialties 02560967-000
TE Connectivity Measurement Specialties 02560418-000
TE Connectivity Measurement Specialties 02560443-000
TE Connectivity Measurement Specialties 02560444-000
TE Connectivity Measurement Specialties 02560994-200

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

GENERAL PURPOSE LVDT HR

Technical documentation and resources
