R-CX-1102-60

Active

Remington Industries

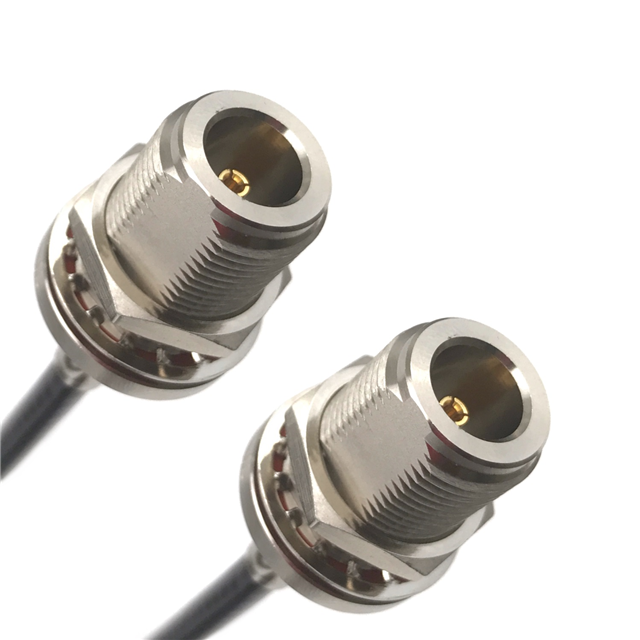

CBL ASSY NTYPE JACK TO JACK 5'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

R-CX-1102-60

Active

Remington Industries

CBL ASSY NTYPE JACK TO JACK 5'

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	R-CX-1102-60	R-CX-110 Series

1st Connector	N-Type Jack	SMA Plug, N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount	Free Hanging (In-Line), Panel Mount
1st Contact Gender	Female	Male, Female
2nd Connector	N-Type Jack	N-Type Jack, SMA Plug
2nd Connector Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount	Panel Mount, Free Hanging (In-Line)
2nd Contact Gender	Female	Female, Male
Cable Type	RG-58C	RG-58C
Color	Black	Black
Features	Shielded	Shielded
Frequency - Max [Max]	1 GHz	1 - 5 GHz
Length	5 ft	4 - 50 yd
Length	1.5 m	1.5 - 1200 m
Length	5 '	5 - 96 ft
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-40 °C	-40 °C
Overall Impedance	50 Ohms	50 Ohms
Style	N-Type to N-Type	SMA to N-Type, SMA to SMA, N-Type to N-Type

R-CX-110 Series

CBL ASSY SMA-NTYPE PLUG-JACK 15'

Part	2nd Connector Mounting Feature	Color	Frequency - Max [Max]	2nd Connector	1st Contact Gender	Length	Length	Length	Overall Impedance	Cable Type	1st Connector	Operating Temperature [Min]	Operating Temperature [Max]	Style	2nd Contact Gender	2nd Connector Mounting Type	1st Connector Mounting Type	Features	1st Connector Mounting Feature
Remington Industries R-CX-1101-180	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Male	15 ft	5 yd	4.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to N-Type	Female	Panel Mount	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-240		Black	5 GHz	SMA Plug	Male	20 ft	20 ft	6.1 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-144		Black	5 GHz	SMA Plug	Male				50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1102-144	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female				50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1101-300	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Male	25 ft	25 ft	7.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to N-Type	Female	Panel Mount	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-96		Black	5 GHz	SMA Plug	Male	96 "	8 '	2.4 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1100-180		Black	5 GHz	SMA Plug	Male	15 ft	5 yd	4.6 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded
Remington Industries R-CX-1102-240	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female	20 ft	20 ft	6.1 m	50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1102-96	Bulkhead - Front Side Nut	Black	1 GHz	N-Type Jack	Female	96 "	8 '	2.4 m	50 Ohms	RG-58C	N-Type Jack	-40 °C	80 C	N-Type to N-Type	Female	Panel Mount	Panel Mount	Shielded	Bulkhead - Front Side Nut
Remington Industries R-CX-1100-60		Black	5 GHz	SMA Plug	Male	5 '	5 ft	1.5 m	50 Ohms	RG-58C	SMA Plug	-40 °C	80 C	SMA to SMA	Male	Free Hanging (In-Line)	Free Hanging (In-Line)	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 93.19
		25	$ 88.53
		50	$ 83.87
		100	$ 79.21

Description

General part information

R-CX-110 Series

Cable Assembly Coaxial N-Type to N-Type RG-58C 60.0" (1.5m) 5.0'
