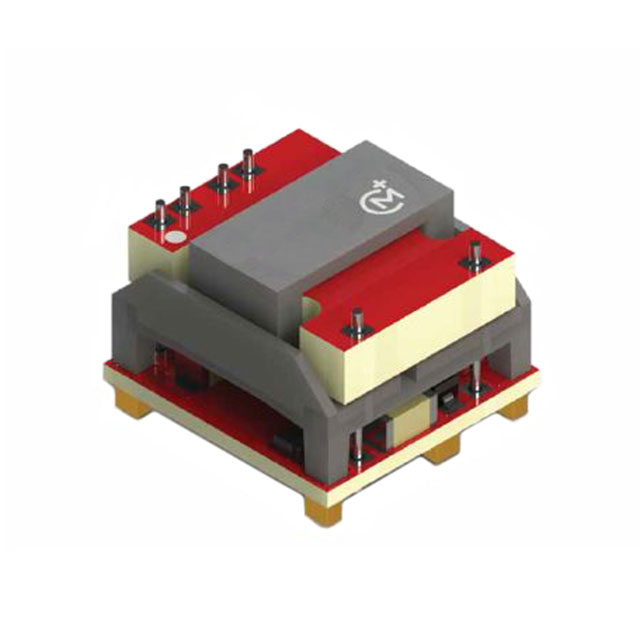

MTC2S1203MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 2 W, 1 OUTPUT, 3.3 V, 606 MA
Deep-Dive with AI
Search across all available documentation for this part.
MTC2S1203MC-R13
ActiveMurata Power Solutions Inc.
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, 2:1, 2 W, 1 OUTPUT, 3.3 V, 606 MA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MTC2S1203MC-R13 | MTC2S12 Series |
|---|---|---|
| Applications | ITE (Commercial), Medical | ITE (Commercial), Medical |
| Current - Output (Max) [Max] | 606 mA | 400 - 606 mA |
| Efficiency | 78.5 % | 78.5 - 80 % |
| Features | Remote On/Off, SCP | Remote On/Off, SCP |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 105 ░C | 105 ░C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 6-SMD Module | 6-SMD Module, 6-SMD |
| Power (Watts) | 2 W | 2 W |
| Size / Dimension [x] | 0.59 in | 0.59 in |
| Size / Dimension [x] | 15 mm | 15 mm |
| Size / Dimension [y] | 14.2 mm | 14.2 mm |
| Size / Dimension [y] | 0.56 in | 0.56 in |
| Size / Dimension [z] | 11.2 mm | 11.2 mm |
| Size / Dimension [z] | 0.44 " | 0.44 " |
| Type | Isolated Module | Isolated Module |
| Voltage - Input (Max) [Max] | 18 V | 18 V |
| Voltage - Input (Min) [Min] | 9 V | 9 V |
| Voltage - Isolation | 3000 V | 3000 V |
| Voltage - Output 1 | 3.3 V | 3.3 - 5 V |
MTC2S12 Series
DC-DC CONVERTER, 3.3V, 0.606A
| Part | Mounting Type | Voltage - Input (Max) [Max] | Voltage - Input (Min) [Min] | Features | Number of Outputs | Voltage - Isolation | Efficiency | Power (Watts) | Applications | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Type | Voltage - Output 1 | Current - Output (Max) [Max] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. MTC2S1203MC-R7 | Surface Mount | 18 V | 9 V | Remote On/Off, SCP | 1 | 3000 V | 78.5 % | 2 W | ITE (Commercial), Medical | -40 °C | 105 ░C | 6-SMD Module | Isolated Module | 3.3 V | 606 mA | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " |
Murata Power Solutions Inc. MTC2S1203MC-R13 | Surface Mount | 18 V | 9 V | Remote On/Off, SCP | 1 | 3000 V | 78.5 % | 2 W | ITE (Commercial), Medical | -40 °C | 105 ░C | 6-SMD Module | Isolated Module | 3.3 V | 606 mA | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " |
Murata Power Solutions Inc. MTC2S1205MC-R7 | Surface Mount | 18 V | 9 V | Remote On/Off, SCP | 1 | 3000 V | 80 % | 2 W | ITE (Commercial), Medical | -40 °C | 105 ░C | 6-SMD | Isolated Module | 5 V | 400 mA | 0.59 in | 14.2 mm | 11.2 mm | 0.56 in | 15 mm | 0.44 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
MTC2S12 Series
Isolated Module DC DC Converter 1 Output 3.3V 606mA 9V - 18V Input
Documents
Technical documentation and resources
