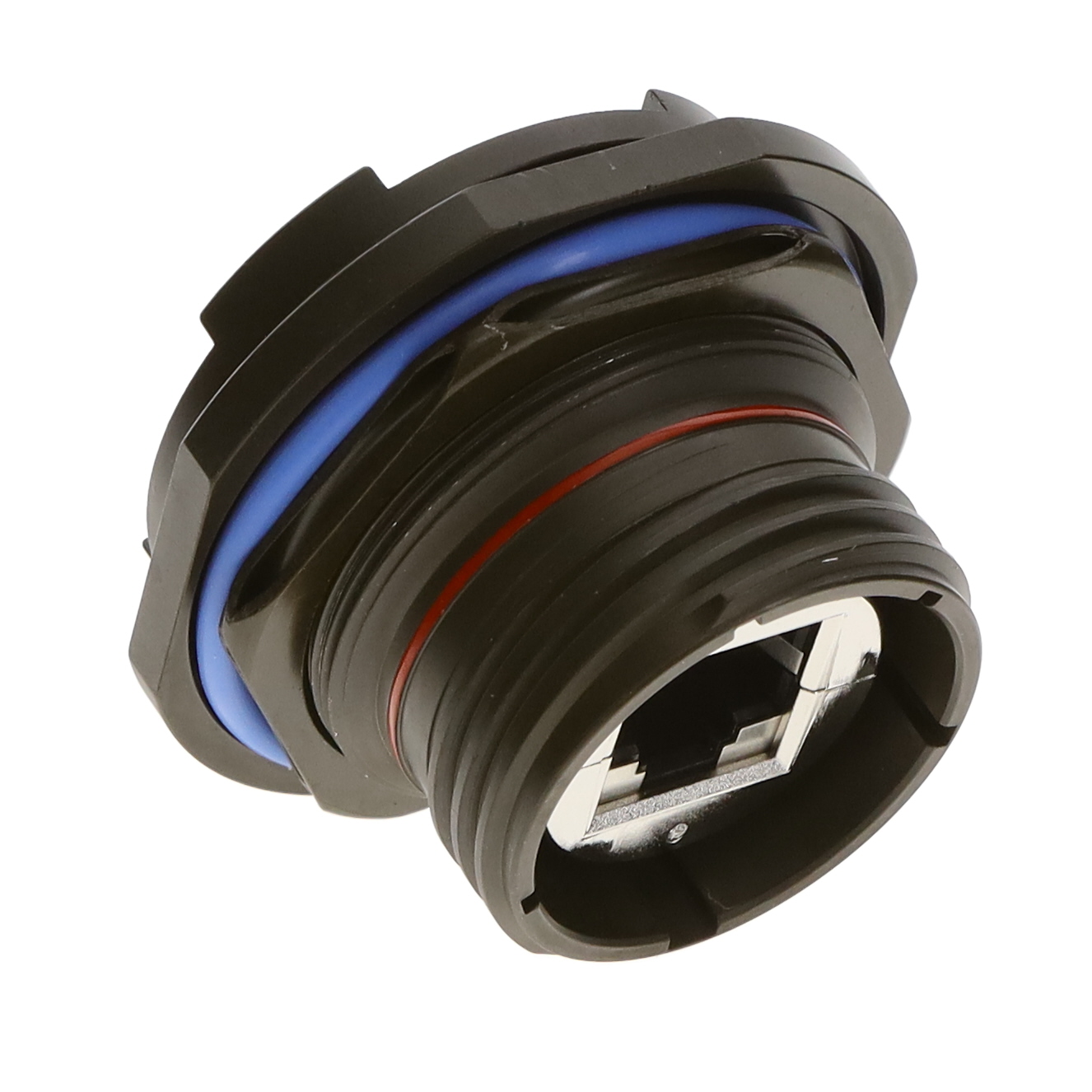

36540
ActiveAmphenol Socapex
RJFTV SIZE 19 38999 SHELL SQUARE
Deep-Dive with AI
Search across all available documentation for this part.
36540
ActiveAmphenol Socapex
RJFTV SIZE 19 38999 SHELL SQUARE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 36540 | 365 Series |
|---|---|---|
| Connector Type | Jack | Jack |
| Ingress Protection | IP68 - Dust Tight, Waterproof | IP68 - Dust Tight, Waterproof |
| LED Color | Does Not Contain LED | Does Not Contain LED |
| Mounting Type | Bulkhead, Panel Mount | Bulkhead, Panel Mount |
| Number of Ports | 1 | 1 |
| Number of Positions/Contacts | - | 8p8c (RJ45, Ethernet) |
| Number of Positions/Contacts [custom] | 4 | 4 |
| Number of Positions/Contacts [custom] | 8 | 8 |
| Number of Rows | 1 | 1 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Orientation | Straight | Straight |
| Ratings | Cat5e | Cat5e |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
365 Series
RJFTV SIZE 19 38999 SHELL JAM NU
| Part | Number of Positions/Contacts | Number of Rows | Orientation | Connector Type | Ratings | Shielding | Mounting Type | LED Color | Number of Ports | Ingress Protection | Termination | Operating Temperature [Max] | Operating Temperature [Min] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex 36542 | 8p8c (RJ45, Ethernet) | 1 | Straight | Jack | Cat5e | Shielded | Bulkhead, Panel Mount | Does Not Contain LED | 1 | IP68 - Dust Tight, Waterproof | Solder | 85 °C | -40 °C | ||
Amphenol Socapex 36540 | 1 | Straight | Jack | Cat5e | Shielded | Bulkhead, Panel Mount | Does Not Contain LED | 1 | IP68 - Dust Tight, Waterproof | Solder | 85 °C | -40 °C | 4 | 8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 177.07 | |
| 10 | $ 164.09 | |||
| 25 | $ 158.19 | |||
| 50 | $ 157.00 | |||
| Cut Tape (CT) | 1 | $ 1.95 | ||
| 10 | $ 1.90 | |||
Description
General part information
365 Series
Jack Modular Connector 8p4c (RJ45, Ethernet) Straight Shielded Cat5e
