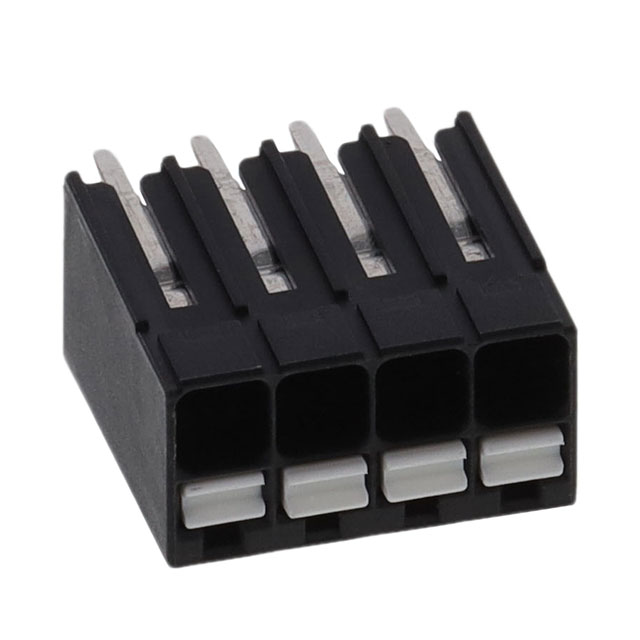

2086-1104
ActiveWAGO Corporation
TERM BLK 4P TOP ENTRY 3.5MM PCB
2086-1104
ActiveWAGO Corporation
TERM BLK 4P TOP ENTRY 3.5MM PCB
Description
General part information
2086-1104
4 Position Wire to Board Terminal Block Vertical with Board 0.138" (3.50mm) Through Hole
Technical Specifications
Parameters and characteristics for this part
| Specification | 2086-1104 |
|---|---|
| Clamp Material | Steel |
| Clamp Plating | Nickel Plated |
| Color | Black |
| Contact Material | Electrolytic Copper |
| Current | 10 A |
| Features | Push Button Actuated |
| Housing Material | Glass Filled, PPA, Polyphthalamide |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -60 °C |
| Pitch | 0.138 in |
| Plating | Tin Plated |
| Positions Per Level | 4 |
| Voltage | 300 V |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 16 AWG |
| Wire Termination | Push Button Clamp, Screwless |
