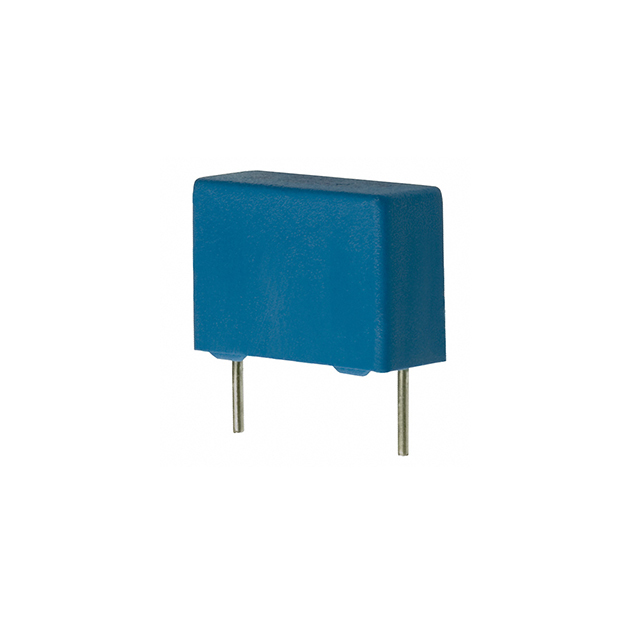

B32642B4224K000
ActiveEPCOS - TDK Electronics
0.22UF 10% 400V MMKP WOUND BOX
B32642B4224K000
ActiveEPCOS - TDK Electronics
0.22UF 10% 400V MMKP WOUND BOX
Description
General part information
B32642B4224K000
0.22 µF Film Capacitor 250V 400V Polypropylene (PP), Metallized Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | B32642B4224K000 |
|---|---|
| Applications | Automotive, High Frequency, Switching, DV/DT, High Pulse |
| Capacitance | 0.22 µF |
| Dielectric Material | Metallized, Polypropylene (PP) |
| ESR (Equivalent Series Resistance) | 7 mOhm |
| Height - Seated (Max) | 0.689 in |
| Lead Spacing | 0.591 in |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.709 in |
| Size / Dimension Width | 0.354 in |
| Termination | PC Pins |
| Tolerance | 10 % |
| Voltage Rating - AC | 250 V |
| Voltage Rating - DC | 400 V |
