TS0101F020V4

Active

E-Switch

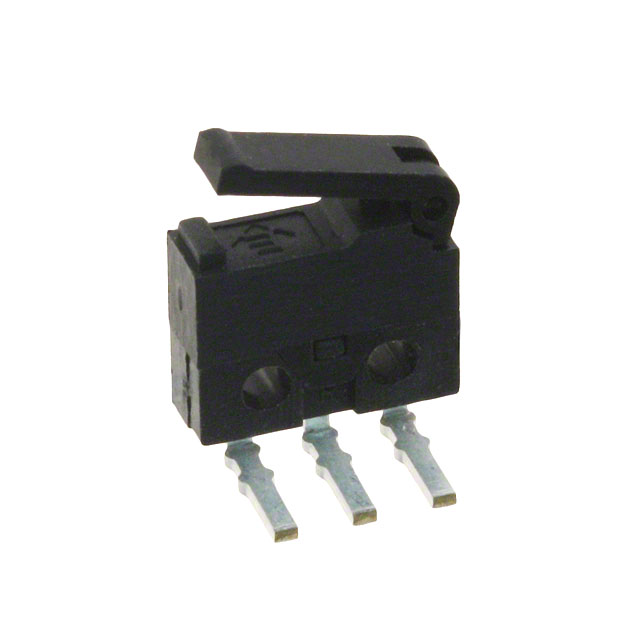

SWITCH SNAP ACTION SPDT 0.3A 6V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SNAP ACTION SPDT 0.3A 6V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	TS0101F020V4	TS0101 Series

Actuator Type	Lever, Straight	Lever, Straight
Circuit	SPDT	SPDT
Current Rating (Amps)	300 mA	300 mA
Electrical Life	50000 Cycles	50000 Cycles
Mechanical Life	100000 Cycles	100000 Cycles
Mounting Type	Through Hole, Right Angle	Through Hole, Through Hole, Right Angle
Operating Force	20 gf	20 gf
Operating Position [custom]	6.7 mm	6.7 mm
Operating Position [custom]	0.264 "	0.264 "
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Pretravel	0.071 in	0.071 in
Pretravel	1.8 mm	1.8 mm
Switch Function	On-Mom	On-Mom
Termination Style	PC Pin	PC Pin
Voltage Rating - DC	6 V	6 V

SWITCH SNAP ACTION SPDT 0.3A 6V

Part	Operating Position [custom]	Operating Position [custom]	Voltage Rating - DC	Actuator Type	Electrical Life	Pretravel	Pretravel	Circuit	Termination Style	Switch Function	Mechanical Life	Mounting Type	Current Rating (Amps)	Operating Force	Operating Temperature [Min]	Operating Temperature [Max]
E-Switch TS0101F020P	6.7 mm	0.264 "	6 V	Lever, Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole	300 mA	20 gf	-25 °C	85 °C
E-Switch TS0101F020V3	6.7 mm	0.264 "	6 V	Lever, Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole, Right Angle	300 mA	20 gf	-25 °C	85 °C
E-Switch TS0101F020V4	6.7 mm	0.264 "	6 V	Lever, Straight	50000 Cycles	0.071 in	1.8 mm	SPDT	PC Pin	On-Mom	100000 Cycles	Through Hole, Right Angle	300 mA	20 gf	-25 °C	85 °C
