110IMX7-12-12-8

Active

Bel Power Solutions

DC DC CONVERTER 12V 12V 7W

Deep-Dive with AI

Search across all available documentation for this part.

110IMX7-12-12-8

Active

Bel Power Solutions

DC DC CONVERTER 12V 12V 7W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	110IMX7-12-12-8	110IMX7 Series

Applications	Railway, ITE (Commercial)	Railway, ITE (Commercial)
Current - Output (Max)	300 mA	300 - 700 mA
Current - Output (Max)	-	1.2 - 240 A
Current - Output (Max)	-	700 mA
Current - Output (Max)	-	240 mA
Efficiency	80 %	80 - 84 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole	Through Hole
Number of Outputs	2	1 - 2
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	14-DIP Module	14-DIP Module, 14-DIP Module, 9 Leads
Power (Watts)	7 W	7 - 7.2 W
Size / Dimension [x]	2 in	2 in
Size / Dimension [x]	50.8 mm	50.8 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [y]	25.4 mm	25.4 mm
Size / Dimension [z]	10.4 mm	10.4 mm
Size / Dimension [z]	0.41 "	0.41 "
Type	Isolated Module, Conformal Coated	Isolated Module, Conformal Coated
Voltage - Input (Max) [Max]	150 V	150 V
Voltage - Input (Min) [Min]	60 V	60 V
Voltage - Isolation	2500 V	2500 V
Voltage - Output 1	12 V	5 - 15 V
Voltage - Output 2	12 V	5 - 15 V

110IMX7 Series

DC DC CONVERTER 5.1V 7W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Voltage - Isolation	Features	Number of Outputs	Applications	Package / Case	Voltage - Output 1	Mounting Type	Voltage - Input (Max) [Max]	Power (Watts)	Efficiency	Voltage - Input (Min) [Min]	Voltage - Output 2	Current - Output (Max)	Current - Output (Max)	Current - Output (Max) [Max]
Bel Power Solutions 110IMX7-05-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated, Isolated Module	85 °C	-40 °C	1.2 A	2500 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	1	ITE (Commercial), Railway	14-DIP Module	5.1 V	Through Hole	150 V	7 W	80 %	60 V
Bel Power Solutions 110IMX7-05-05-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated, Isolated Module	85 °C	-40 °C		2500 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2	ITE (Commercial), Railway	14-DIP Module, 9 Leads	5 V	Through Hole	150 V	7 W	80 %	60 V	5 V	700 mA	700 mA
Bel Power Solutions 110IMX7-12-12-8	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated, Isolated Module	85 °C	-40 °C		2500 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2	ITE (Commercial), Railway	14-DIP Module	12 V	Through Hole	150 V	7 W	80 %	60 V	12 V		300 mA
Bel Power Solutions 110IMX7-15-15-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated, Isolated Module	85 °C	-40 °C	240 mA	2500 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2	ITE (Commercial), Railway	14-DIP Module	15 V	Through Hole	150 V	7 W	84 %	60 V	15 V			240 mA
Bel Power Solutions 110IMX7-12-12-8G	10.4 mm	2 in	50.8 mm	0.41 "	25.4 mm	25.4 mm	Conformal Coated, Isolated Module	85 °C	-40 °C		2500 V	OCP, OTP, OVP, Remote On/Off, SCP, UVLO	2	ITE (Commercial), Railway	14-DIP Module, 9 Leads	12 V	Through Hole	150 V	7.2 W	83 %	60 V	12 V		300 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

110IMX7 Series

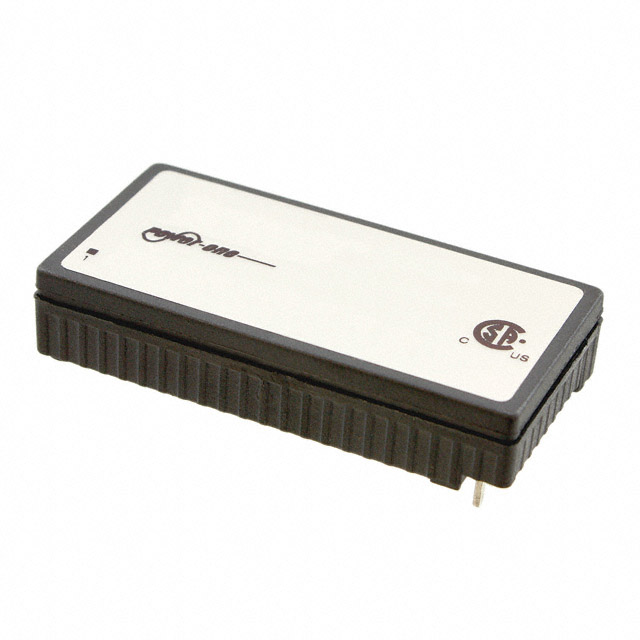

Isolated Module, Conformal Coated DC DC Converter 2 Output 12V 12V 300mA, 300mA 60V - 150V Input
