8208 0601000

Active

Belden Inc.

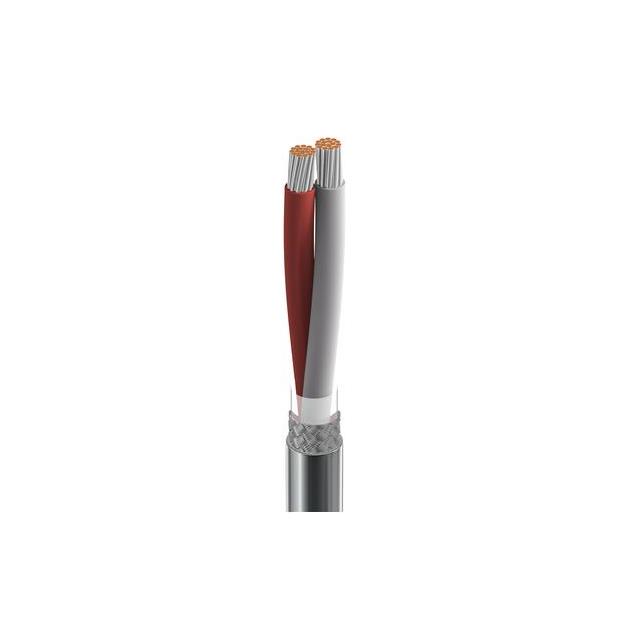

CABLE 2COND 18AWG CHRM SHD

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 2COND 18AWG CHRM SHD

Technical Specifications

Parameters and characteristics for this part

Specification	8208 0601000

Cable Type	Multi-Conductor
Conductor Insulation	Ethylene Propylene Terpolymer Rubber (EPDM)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	16
Conductor Strand [custom]	30 AWG
Jacket (Insulation) Diameter [diameter]	0.257 in
Jacket (Insulation) Diameter [diameter]	6.53 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.025 in
Jacket (Insulation) Thickness	0.635 mm
Jacket Color	Chrome
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Shield Coverage	73 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio, Instrumentation, Control
Wire Gauge	18 AWG

Part	Jacket (Insulation) Material	Wire Gauge	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Jacket Color	Shield Material	Length	Length	Shield Type	Conductor Material	Shield Coverage	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand [custom]	Conductor Strand [custom]	Conductor Insulation	Usage	Cable Type	Number of Conductors	Length [x]	Length [x]
Belden Inc. 8208 0601000	Poly-Vinyl Chloride (PVC)	18 AWG	0.025 in	0.635 mm	0.257 in	6.53 mm	Chrome	Copper Tinned	1000 ft	304.8 m	Braid	Copper Tinned	73 %	-20 C	80 C	16	30 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio Control Instrumentation	Multi-Conductor	2
Belden Inc. 8208 060500	Poly-Vinyl Chloride (PVC)	18 AWG	0.025 in	0.635 mm	0.257 in	6.53 mm	Chrome	Copper Tinned			Braid	Copper Tinned	73 %	-20 C	80 C	16	30 AWG	Ethylene Propylene Terpolymer Rubber (EPDM)	Audio Control Instrumentation	Multi-Conductor	2	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1000	$ 4.66

General part information

2 (1 Pair Twisted) Conductor Multi-Conductor Cable Chrome 18 AWG Braid 1000.0' (304.8m)
