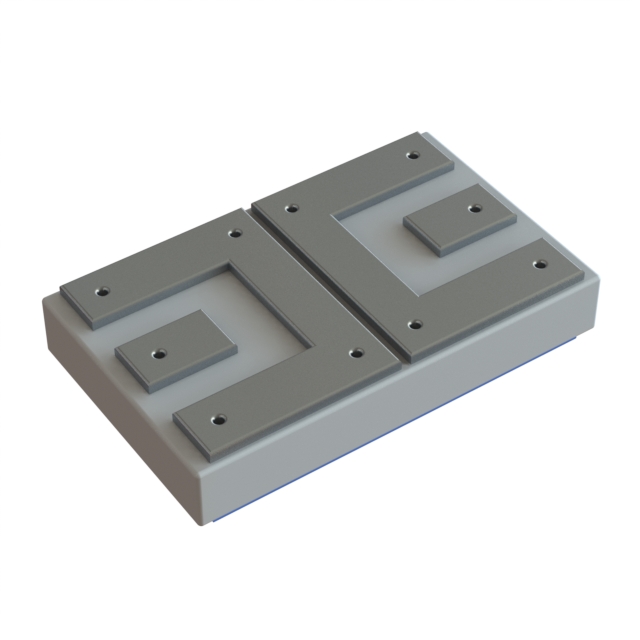

ATS2012-3DB-T1

Active

Susumu

HIGH FREQUENCY CHIP ATTENUATOR

Search across all available documentation for this part.

Active

Susumu

HIGH FREQUENCY CHIP ATTENUATOR

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 5.28

General part information

RF Attenuators 3dB 0 Hz ~ 30 GHz 50 Ohms 100mW 0805 (2012 Metric)

Technical documentation and resources

Part	Frequency Range [Max]	Package / Case	Attenuation Value [custom]	Impedance	Power (Watts)	Attenuation Value
Susumu ATS2012-6DB-T1	30 GHz	0805	6 dB	50 Ohms	0.1 W
Susumu ATS2012-03DB-FD-T1	55 GHz	0805	3 dB	50 Ohms	0.1 W
Susumu ATS2012-01DB-FD-T1	55 GHz	0805		50 Ohms	0.1 W	1 dB
Susumu ATS2012-03DB-FD-T05	55 GHz	0805	3 dB	50 Ohms	0.1 W
Susumu ATS2012-08DB-FD-T1	55 GHz	0805		50 Ohms	0.1 W	8 dB
Susumu ATS2012-09DB-FD-T05	55 GHz	0805		50 Ohms	0.1 W	9 dB
Susumu ATS2012-8DB-T1	30 GHz	0805		50 Ohms	0.1 W	8 dB
Susumu ATS2012-09DB-FD-T1	55 GHz	0805		50 Ohms	0.1 W	9 dB
Susumu ATS2012-05DB-FD-T1	55 GHz	0805		50 Ohms	0.1 W
Susumu ATS2012-5DB-T05	30 GHz	0805		50 Ohms	0.1 W
