XRCGB26M000F1H23R0

Obsolete

Murata Electronics

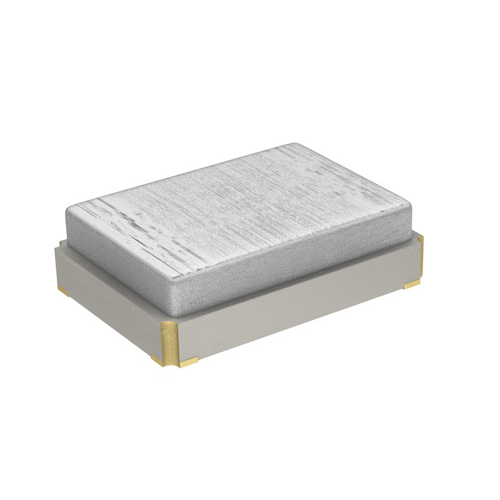

CRYSTAL 26.0000MHZ 6.8PF SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCrystal Units/Oscillators Catalog Datasheet

XRCGB26M000F1H23R0

Obsolete

Murata Electronics

CRYSTAL 26.0000MHZ 6.8PF SMD

Deep-Dive with AI

DocumentsCrystal Units/Oscillators Catalog Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

XRCGB Series

26 MHz ±10ppm Crystal 6.8pF 80 Ohms 4-SMD, No Lead

Documents

Technical documentation and resources

Crystal Units/Oscillators Catalog

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	XRCGB26M000F1H23R0	XRCGB Series

	-	-
ESR (Equivalent Series Resistance)	80 Ohm	40 - 270 Ohms
Frequency	26 MHz	16 - 48 MHz
Frequency Stability	16 ppm	10 - 100 ppm
Frequency Tolerance	10 ppm	10 - 100 ppm
Height - Seated (Max) [Max]	0.7 mm	0.7 mm
Height - Seated (Max) [Max]	0.028 in	0.028 in
Load Capacitance	6.8 pF	6 - 12 pF
Mounting Type	Surface Mount	Surface Mount
Operating Mode	Fundamental	Fundamental
Operating Temperature	-	-10 °C
Operating Temperature	-	158 °F
Operating Temperature [Max]	85 °C	70 - 125 °C
Operating Temperature [Min]	-40 °C	-40 - -20 ░C
Package / Case	4-SMD, No Lead	4-SMD, No Lead
Ratings	-	AEC-Q200
Size / Dimension [x]	2 mm	2 mm
Size / Dimension [x]	0.079 in	0.079 in
Size / Dimension [y]	0.063 in	0.063 in
Size / Dimension [y]	1.6 mm	1.6 mm
Type	MHz Crystal	MHz Crystal

XRCGB Series

CRYSTAL 40.0000MHZ 12PF SMD

...

Part	Frequency Stability	Operating Mode	Type	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Frequency	Load Capacitance	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Package / Case	Frequency Tolerance	Mounting Type	ESR (Equivalent Series Resistance)
Murata Electronics XRCGB40M000F1S1DR0	10 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	40 MHz	12 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	10 ppm	Surface Mount	50 Ohms
Murata Electronics XRCGB27M120F2P01R0	20 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	27.12 MHz	8 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	20 ppm	Surface Mount	150 Ohms
Murata Electronics XRCGB31M250F3M01R0
Murata Electronics XRCGB40M000F1S1JR0	10 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	40 MHz	9 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	10 ppm	Surface Mount	50 Ohms
Murata Electronics XRCGB26M000F1H02R0	10 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	26 MHz	10 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	10 ppm	Surface Mount	60 Ohms
Murata Electronics XRCGB24M576F3M00R0	40 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	24.576 MHz	6 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	30 ppm	Surface Mount	150 Ohms
Murata Electronics XRCGB16M000FXN00R0	40 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	16 MHz	6 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	40 ppm	Surface Mount	200 Ohm
Murata Electronics XRCGB32M000F3M01R0	40 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	32 MHz	8 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	30 ppm	Surface Mount	100 Ohms
Murata Electronics XRCGB40M000F4G00R0	50 ppm	Fundamental	MHz Crystal	-40 °C	85 °C	0.7 mm	0.028 in	40 MHz	6 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	45 ppm	Surface Mount	100 Ohms
Murata Electronics XRCGB26M000F2P01R0	20 ppm	Fundamental	MHz Crystal	-30 ░C	85 °C	0.7 mm	0.028 in	26 MHz	8 pF	2 mm	0.063 in	1.6 mm	0.079 in	4-SMD, No Lead	20 ppm	Surface Mount	150 Ohms
