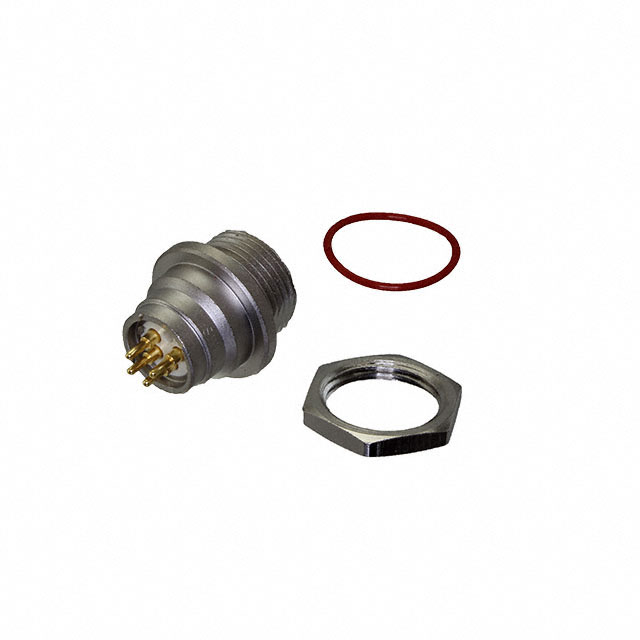

HS2P4F20-BP

Active

Switchcraft Inc.

CONN RCPT FMALE 4POS GOLD SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN RCPT FMALE 4POS GOLD SOLDER

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	HS2P4F20-BP	HS2P4F Series

Applications	Audio, Testing Equipment & Measurement, Agriculture, Medical, General	Audio, Testing Equipment & Measurement, Agriculture, Medical, General
Color	Silver	Silver
Connector Type	Receptacle, Female Sockets	Receptacle, Female Sockets
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Push-Pull	Push-Pull
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Liquid Crystal Polymer (LCP)	Liquid Crystal Polymer (LCP)
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount	Through Hole, Panel Mount
Number of Positions	4	4
Operating Temperature [Max]	135 °C	135 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Metal	Metal
Shell Finish	Electroless Nickel	Electroless Nickel
Shell Material	Copper Alloy	Copper Alloy
Shielding	Shielded	Shielded
Termination	Solder	Solder
Voltage Rating	125 VAC	125 VAC

CONN RCPT FMALE 4POS GOLD SOLDER

Part	Insert Material	Shell Finish	Shielding	Connector Type	Fastening Type	Applications	Shell Material	Color	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Primary Material	Voltage Rating	Number of Positions	Orientation	Mounting Type	Termination	Mounting Feature	Ingress Protection
Switchcraft Inc. HS2P4F20-BP	Liquid Crystal Polymer (LCP)	Electroless Nickel	Shielded	Receptacle, Female Sockets	Push-Pull	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Copper Alloy	Silver	Gold	135 °C	-40 °C	Copper Alloy	Metal	125 VAC	4	Keyed	Panel Mount, Through Hole	Solder	Bulkhead - Front Side Nut	IP66, IP67, IP68
Switchcraft Inc. HS2P4F20-BPE	Liquid Crystal Polymer (LCP)	Electroless Nickel	Shielded	Receptacle, Female Sockets	Push-Pull	Agriculture, Audio, General, Medical, Testing Equipment & Measurement	Copper Alloy	Silver	Gold	135 °C	-40 °C	Copper Alloy	Metal	125 VAC	4	Keyed	Panel Mount, Through Hole	Solder	Bulkhead - Front Side Nut	IP66, IP67, IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder
