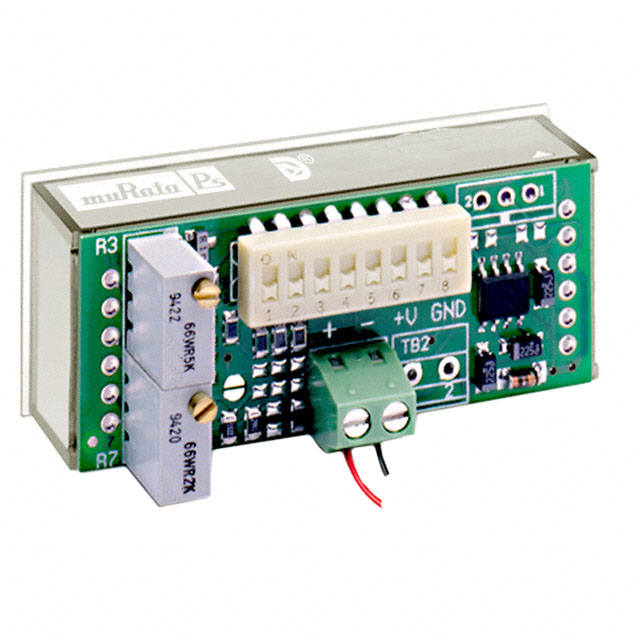

DMS-30LCDA-4/20I-C
ActiveMurata Power Solutions Inc.
PROCESS METER 4-20MA LCD PNL MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DMS-30LCDA-4/20I-C
ActiveMurata Power Solutions Inc.
PROCESS METER 4-20MA LCD PNL MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DMS-30LCDA-4/20I-C | DMS-30LCD Series |
|---|---|---|
| - | - | |
| Display Characters - Height [z] | 0.401 " | 0.401 " |
| Display Characters - Height [z] | 10.2 mm | 10.2 mm |
| Display Type | LCD - Black Characters | LCD - Black Characters |
| Features | Bezel Sold Separately | Bezel Sold Separately |
| Measuring Range | - | 2 V |
| Measuring Range | - | -2 V |
| Measuring Type | Process | Process, Voltage |
| Number of Characters Per Row | 3.5 | 3.5 |
| Operating Temperature [Max] | 60 °C | 60 °C |
| Operating Temperature [Min] | 0 °C | 0 °C |
| Output Type | - | Reference |
| Panel Cutout Dimensions [x] | 53.8 mm | 53.8 mm |
| Panel Cutout Dimensions [y] | 22.3 mm | 22.3 mm |
| Termination Style | Screw Terminal | Screw Terminal, PC Pin |
| Type | Process Meter | Process Meter, Voltmeter |
| Voltage - Supply | Loop Power | Loop Power |
| Voltage - Supply | - | 5 V |
| Weight | 20.87 g | 20.87 g |
| Weight | 0.046 lb | 0.046 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
DMS-30LCD Series
UNIPOLAR READING, LOOP-POWERED LCD METER
| Part | Display Characters - Height [z] | Display Characters - Height [z] | Number of Characters Per Row | Display Type | Operating Temperature [Max] | Operating Temperature [Min] | Type | Voltage - Supply | Termination Style | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Weight | Weight | Measuring Type | Measuring Range [Max] | Measuring Range [Min] | Output Type | Voltage - Supply | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. DMS-30LCDA-4/20S-C | |||||||||||||||||||
Murata Power Solutions Inc. DMS-30LCD-2-5-C | |||||||||||||||||||
Murata Power Solutions Inc. DMS-30LCDA-4/20S-C | 0.401 " | 10.2 mm | 3.5 | LCD - Black Characters | 60 °C | 0 °C | Process Meter | Loop Power | Screw Terminal | 22.3 mm | 53.8 mm | 20.87 g | 0.046 lb | Process | |||||
Murata Power Solutions Inc. DMS-30LCD-1-5-C | 0.401 " | 10.2 mm | 3.5 | LCD - Black Characters | 60 °C | 0 °C | Voltmeter | PC Pin | 22.3 mm | 53.8 mm | 20.87 g | 0.046 lb | Voltage | 2 V | -2 V | Reference | 5 V | ||
Murata Power Solutions Inc. DMS-30LCD-1-5-C | |||||||||||||||||||
Murata Power Solutions Inc. DMS-30LCDA-4/20I-C | 0.401 " | 10.2 mm | 3.5 | LCD - Black Characters | 60 °C | 0 °C | Process Meter | Loop Power | Screw Terminal | 22.3 mm | 53.8 mm | 20.87 g | 0.046 lb | Process | Bezel Sold Separately | ||||
Murata Power Solutions Inc. DMS-30LCD-2-5-C |
Description
General part information
DMS-30LCD Series
Process Meter LCD - Black Characters Display Panel Mount
