2006-1611

Active

WAGO Corporation

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS PUSH-IN CAGE CLAMP T DIN RAIL 10A BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2006-1611

Active

WAGO Corporation

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS PUSH-IN CAGE CLAMP T DIN RAIL 10A BOX

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2006-1611	2006-161 Series

Color	Gray	Gray
Current - IEC	10 A	10 A
Disconnect Type	Fuse	Fuse
Features	-	LED Indicator
Fuse Type [x]	5 mm	5 mm
Fuse Type [y]	20 mm	20 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6
Number of Levels	1	1
Number of Positions	2	2
Stripping Length [Max]	15 mm	15 mm
Stripping Length [Min]	13 mm	13 mm
Terminal - Width	7.5 mm	7.5 mm
Termination Style	Push In, Spring	Push In, Spring
Type	Disconnect	Disconnect
Voltage - IEC	800 V	800 V
Wire Gauge or Range - AWG [Max]	14 AWG	14 AWG
Wire Gauge or Range - AWG [Min]	8 AWG	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²	2.5 mm²

2006-161 Series

FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A

Part	Number of Positions	Number of Levels	Terminal - Width	Features	Fuse Type [y]	Fuse Type [x]	Current - IEC	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Type	Termination Style	Stripping Length [Min]	Stripping Length [Max]	Color	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Material - Insulation
WAGO Corporation 2006-1611/1000-541	2	1	7.5 mm	LED Indicator	20 mm	5 mm	10 A	Fuse	14 AWG	8 AWG	Disconnect	Push In, Spring	13 mm	15 mm	Gray	10 mm²	2.5 mm²	800 V	Polyamide (PA66), Nylon 6/6
WAGO Corporation 2006-1611	2	1	7.5 mm		20 mm	5 mm	10 A	Fuse	14 AWG	8 AWG	Disconnect	Push In, Spring	13 mm	15 mm	Gray	10 mm²	2.5 mm²	800 V	Polyamide (PA66), Nylon 6/6

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.50
		10	$ 11.00
		25	$ 10.37
		50	$ 9.87
		100	$ 9.68
		250	$ 8.43
		500	$ 8.12
		1000	$ 7.81
Newark	Each	1	$ 15.49
		25	$ 14.66
		100	$ 13.83
		250	$ 12.94
		500	$ 12.05

Description

General part information

2006-161 Series

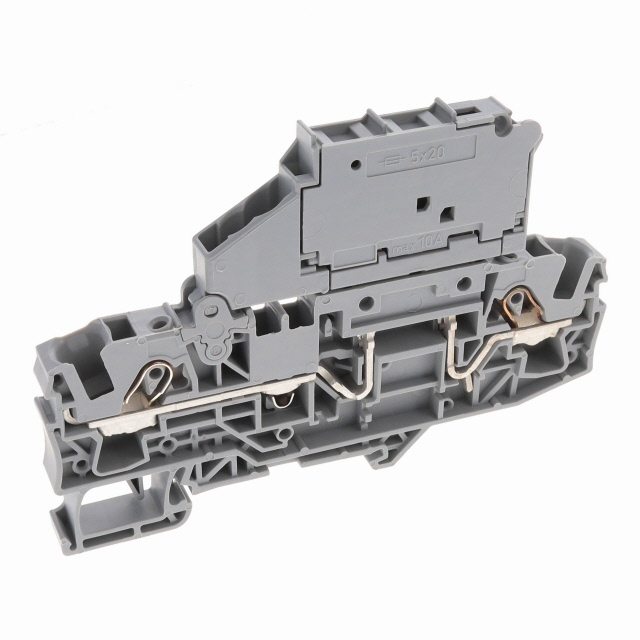

The 2006-1611 is a 2P2C Fuse Disconnect Terminal Block with pivoting fuse holder for 5 x 20mm miniature metric fuse. It comes with a polyamide 66 (PA 66) insulator and there is no blown fuse indication.
