M1CXA-4040K
Active3M
IDC CABLE - MKC40A/MC40F/X
Deep-Dive with AI
Search across all available documentation for this part.
M1CXA-4040K
Active3M
IDC CABLE - MKC40A/MC40F/X
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | M1CXA-4040K | M1CXA Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Multiple, Twisted Pair (Flat) | Ribbon, Multiple, Multiple, Twisted Pair (Flat) |
| Connector Type | Socket to Cable | Socket to Cable |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length [x] | 1.02 m | 1.02 - 914.4 mm |
| Length [x] | 3.34 ft | 3 - 3.34 ft |
| Number of Positions | 40 | 10 - 60 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
M1CXA Series
IDC CABLE - MKC26A/MC26M/X
| Part | Number of Rows | Shielding | Color | Contact Finish | Pitch - Cable | Pitch - Cable | Connector Type | Length [x] | Length [x] | Pitch - Connector | Pitch - Connector | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Features | Cable Termination | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
2 | Unshielded | Multiple, Ribbon | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 26 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Twisted Pair (Flat) | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3.34 ft | 1.02 m | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 50 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Twisted Pair (Flat) | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3.34 ft | 1.02 m | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 34 | Polarizing Key | IDC | ||
2 | Unshielded | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 24 | Polarizing Key | IDC | |||
2 | Unshielded | Multiple, Ribbon | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 24 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Twisted Pair (Flat) | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3.34 ft | 1.02 m | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 40 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Ribbon | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 30 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Twisted Pair (Flat) | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3.34 ft | 1.02 m | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 60 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Ribbon | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3 ft | 914.4 mm | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 10 | Polarizing Key | IDC | ||
2 | Unshielded | Multiple, Twisted Pair (Flat) | Gold | 0.05 " | 1.27 mm | Socket to Cable | 3.34 ft | 1.02 m | 0.1 in | 2.54 mm | 0.76 Ám | 30 Áin | 26 | Polarizing Key | IDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 21.70 | |
| 10 | $ 16.72 | |||
| 25 | $ 15.13 | |||
| 50 | $ 14.06 | |||
| 100 | $ 13.09 | |||
| 250 | $ 11.94 | |||
| 500 | $ 11.17 | |||
Description
General part information
M1CXA Series

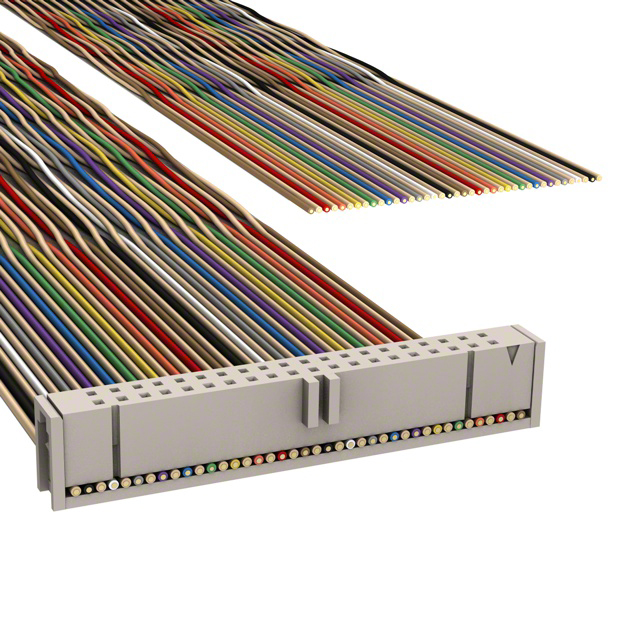

40 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)
