FCA1206C684M
ObsoleteCornell Dubilier Knowles
CAP FILM 0.68UF 20% 16VDC 1206
FCA1206C684M
ObsoleteCornell Dubilier Knowles
CAP FILM 0.68UF 20% 16VDC 1206
Description
General part information
FCA1206C684M

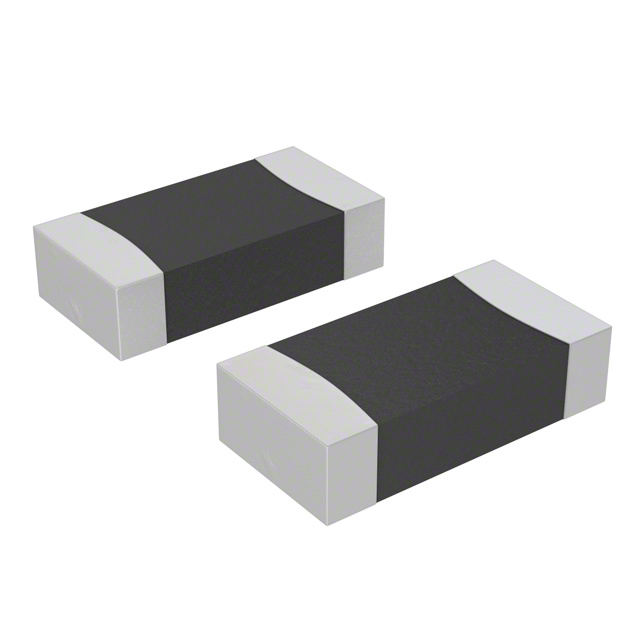

0.68 µF Film Capacitor 12V 16V Acrylic, Metallized 1206 (3216 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | FCA1206C684M |
|---|---|
| Applications | General Purpose |
| Capacitance | 0.68 µF |
| Dielectric Material | Metallized, Acrylic |
| Features | Low ESR |
| Height - Seated (Max) | 0.063 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Termination | Solder Pads |
| Tolerance | 20 % |
| Voltage Rating - AC | 12 V |
| Voltage Rating - DC | 16 V |
