N2514-6V0C-RB-WD

Active

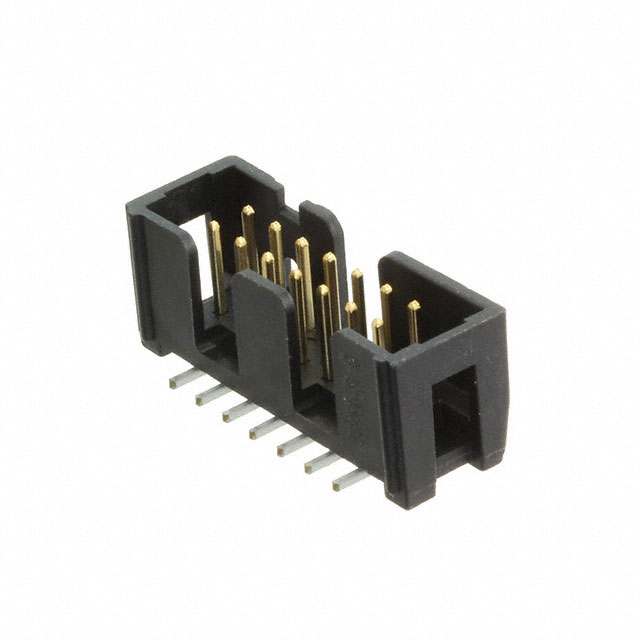

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 14 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN +2

N2514-6V0C-RB-WD

Active

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 14 CONTACTS, SURFACE MOUNT STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	N2514-6V0C-RB-WD	N2514 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin	Tin, Tin-Lead
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	200 µin	200 µin
Contact Finish Thickness - Post	5.08 µm	5.08 µm
Contact Length - Post	-	3.94 mm
Contact Length - Post	-	0.155 "
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	1.75 A	1.75 A
Fastening Type	Push-Pull	Push-Pull
Features	Pick and Place, Keying Slot	Pick and Place, Keying Slot
Insulation Color	Black	Black
Insulation Height	-	0.338 in
Insulation Height	-	8.59 mm
Insulation Height [z]	9.91 mm	9.91 mm
Insulation Height [z]	0.39 in	0.39 in
Insulation Material	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled, Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Surface Mount	Surface Mount, Through Hole, Right Angle
Number of Positions	14	14
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

N2514 Series

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 14 CONTACTS, SURFACE MOUNT STRAIGHT

Part	Insulation Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Insulation Height [z]	Insulation Height [z]	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Material Flammability Rating	Shrouding	Style	Fastening Type	Number of Positions Loaded	Termination	Number of Positions	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows	Contact Shape	Current Rating (Amps)	Contact Type	Insulation Material	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post
3M N2514-6V0C-RB-WD	Black	30 Áin	0.76 Ám	Copper Alloy	Surface Mount	Gold	0.1 in	2.54 mm	9.91 mm	0.39 in	Header	105 ░C	-55 °C	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Board, Cable	Push-Pull	All	Solder	14	200 µin	5.08 µm	Keying Slot, Pick and Place	2.54 mm	0.1 in	2	Square	1.75 A	Male Pin	Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
3M N2514-5003-RB	Black	30 Áin	0.76 Ám	Copper Alloy	Through Hole, Right Angle	Gold	0.1 in	2.54 mm			Header	105 ░C	-55 °C	Tin	UL94 V-0	Shrouded - 4 Wall	Board to Board, Cable	Push-Pull	All	Solder	14	200 µin	5.08 µm	Keying Slot	2.54 mm	0.1 in	2	Square	1.75 A	Male Pin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.338 in	8.59 mm	3.94 mm	0.155 "
3M N2514-5003-UB	Black	30 Áin	0.76 Ám	Copper Alloy	Through Hole, Right Angle	Gold	0.1 in	2.54 mm			Header	105 ░C	-55 °C	Tin-Lead	UL94 V-0	Shrouded - 4 Wall	Board to Board, Cable	Push-Pull	All	Solder	14	200 µin	5.08 µm	Keying Slot	2.54 mm	0.1 in	2	Square	1.75 A	Male Pin	Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT), Polyester	0.338 in	8.59 mm	3.94 mm	0.155 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 5.41
		10	$ 4.91
		100	$ 4.33
	Digi-Reel®	1	$ 5.41
		10	$ 4.91
		100	$ 4.33
	Tape & Reel (TR)	200	$ 4.33
		400	$ 3.79
		600	$ 3.68
		1000	$ 3.14
		2000	$ 3.03
Newark	Each (Supplied on Cut Tape)	1	$ 6.32
		10	$ 5.76
		100	$ 4.94
		500	$ 4.11
		1000	$ 3.53
		5000	$ 3.12
		10000	$ 3.05

Description

General part information

N2514 Series

The 2500 series Four-wall Header with copper alloy contacts. This series comes in low profile, SMT straight, straight and right-angle through-hole mounting styles. It feature centre slot polarization prevents mis-insertions and reduces insertion time. Optional retainer clip for locking sockets in place and increasing connection reliability in vibration-prone environments.
