45-2816.3C90.003

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SW BODY SELECT NON-ILLUM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.60

General part information

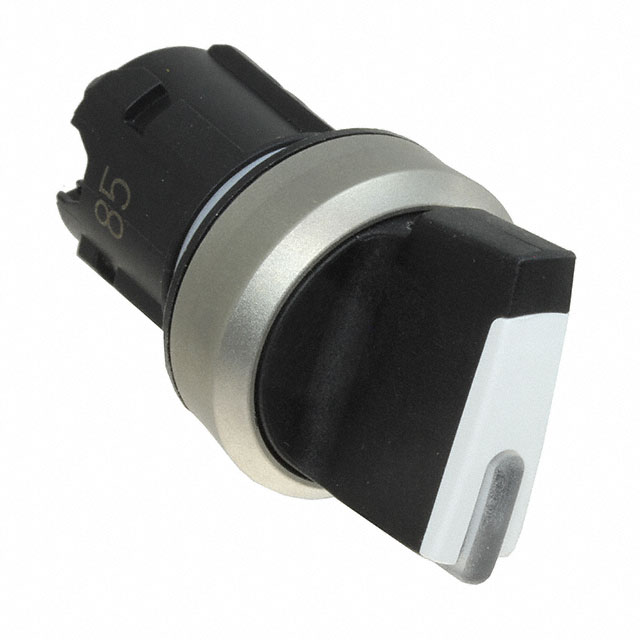

Configurable Switch Body Selector Non-Illuminated

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	45-2816.3C90.003	45-2816 Series

(Select First, Then Apply Filters) Compatible Series	45, EAO	45, EAO
Actuator Type	Selector	Selector
Illumination	Non-Illuminated	Non-Illuminated
Panel Cutout Dimensions	22.3 mm	22.3 mm
Requires	Contact Block(s)	Contact Block(s)
Type	Momentary, Maintained	Momentary, Maintained

CONFIG SW BODY SELECT NON-ILLUM

Part	(Select First, Then Apply Filters) Compatible Series	Illumination	Type	Panel Cutout Dimensions	Actuator Type	Requires
EAO 45-2816.2C90.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.3C90.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.3C40.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.3C60.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.1C50.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.2C50.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.2D90.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.2C20.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.1C90.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
EAO 45-2816.1C60.003	45, EAO	Non-Illuminated	Maintained, Momentary	22.3 mm	Selector	Contact Block(s)
