Description
General part information

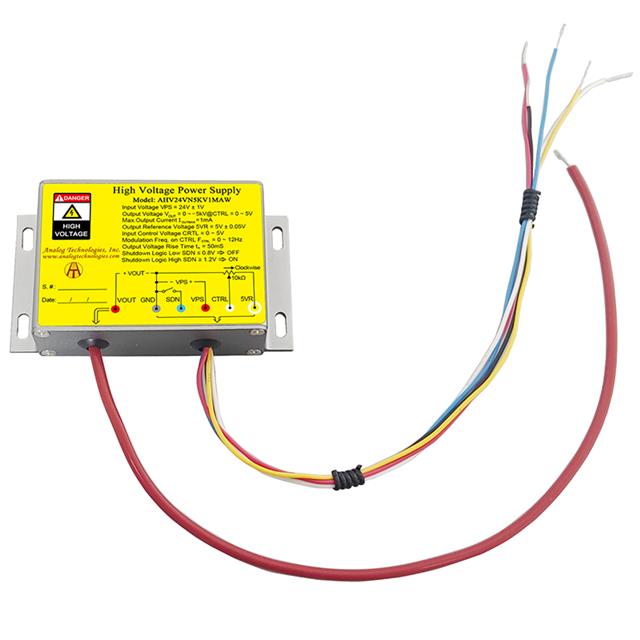

AHV24VN5KV1MAW
Enclosed DC DC Converter 1 Output 0 ~ 5000V 1mA 25V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AHV24VN5KV1MAW |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 1 mA |
| Efficiency | 70 % |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 55 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 5 W |
| Size / Dimension Height | 1.1 in |
| Size / Dimension Length | 4.11 in |
| Size / Dimension Width | 2.36 in |
| Type | Enclosed |
| Voltage - Input (Max) | 25 V |
| Voltage - Input (Min) | 23 V |
| Voltage - Output 1 (Max) | 0 V |
| Voltage - Output 1 (Min) | -5000 V |
