ABC550-1T15

Active

Bel Power Solutions

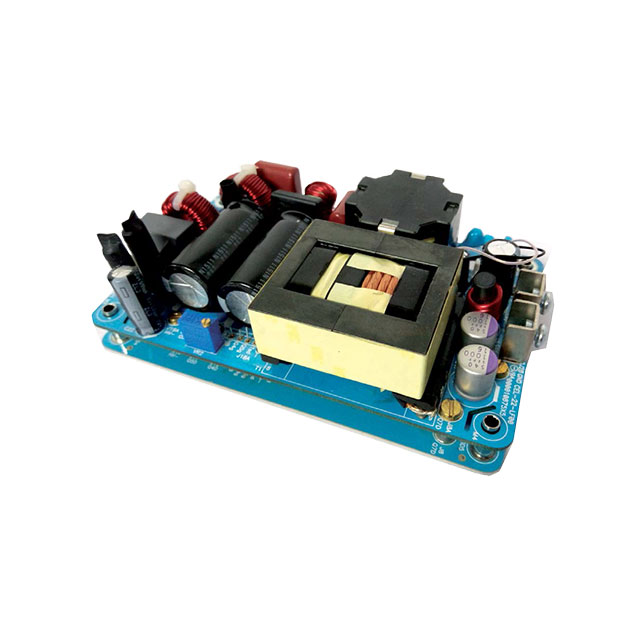

AC/DC CONVERTER 15V 150/550W

Search across all available documentation for this part.

Active

Bel Power Solutions

AC/DC CONVERTER 15V 150/550W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	ABC550-1T15	ABC550 Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	CE	CE
Current - Output 1	7.33 A	2.59 - 7.33 A
Efficiency	90 %	90 - 92 %
Features	Standby Output, Universal Input, PFC, DC Input Capable	Standby Output, Universal Input, PFC, DC Input Capable
Minimum Load Required	False	False
Mounting Type	Chassis Mount	Chassis Mount
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	550 W	550 W
Power (Watts)	150 W	150 W
Size / Dimension [x]	5 in	5 in
Size / Dimension [x]	127 mm	127 mm
Size / Dimension [y]	3 "	3 "
Size / Dimension [y]	76.2 mm	76.2 mm
Size / Dimension [z]	38.1 mm	38.1 mm
Size / Dimension [z]	1.5 "	1.5 "
Type	Open Frame	Open Frame
Voltage - Input [Max]	264 VAC	264 VAC
Voltage - Input [Min]	90 VAC	90 VAC
Voltage - Isolation	3000 V	3000 V
Voltage - Output 1	15 V	15 - 48 V

AC/DC POWER SUPPLY SINGLE-OUT 58V 4.31(CONDUCTION)A/2.59(CONVECTION)A/9.48(FORCED AIR)A 550W 7-PIN

Part	Power (Watts)	Power (Watts)	Mounting Type	Voltage - Input [Min]	Voltage - Input [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Applications	Type	Number of Outputs	Features	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Isolation	Approval Agency	Current - Output 1	Efficiency	Voltage - Output 1
Bel Power Solutions ABC550-1T58	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable, PFC, Standby Output, Universal Input	-40 °C	70 °C	3000 V	CE	2.59 A
Bel Power Solutions ABC550-1T48	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable, PFC, Standby Output, Universal Input	-40 °C	70 °C	3000 V	CE	3.13 A	92 %	48 V
Bel Power Solutions ABC550-1T15	550 W	150 W	Chassis Mount	90 VAC	264 VAC	5 in	3 "	127 mm	38.1 mm	76.2 mm	1.5 "	ITE (Commercial)	Open Frame	1	DC Input Capable, PFC, Standby Output, Universal Input	-40 °C	70 °C	3000 V	CE	7.33 A	90 %	15 V
