EN3P5MRAPC

Active

Switchcraft Inc.

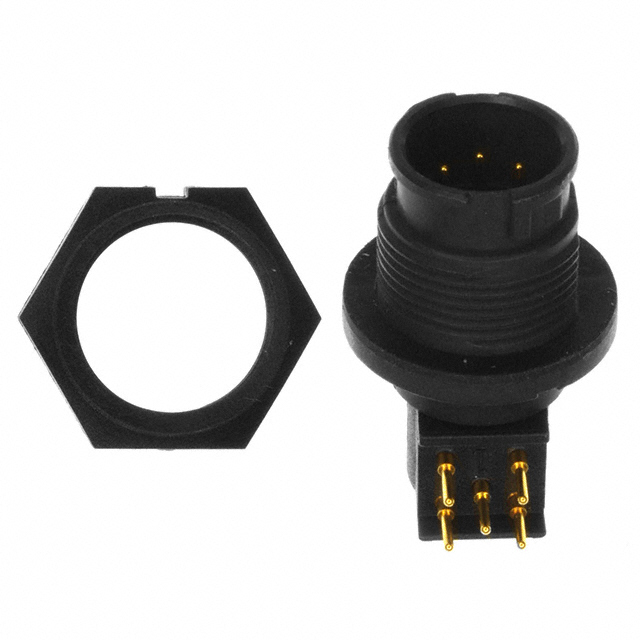

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

EN3P5MRAPC

Active

Switchcraft Inc.

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

EN3P5M Series

5 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3P5MRAPC	EN3P5M Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Color	Black	Black
Connector Type	Receptacle, Male Pins	Receptacle, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	4 A	4 - 7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount	Through Hole, Panel Mount, Right Angle
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Solder	Solder, Circuit Board, Solder
Voltage Rating	250 VAC	250 VAC

EN3P5M Series

CONN RCPT MALE 5POS GOLD SOLDER

Part	Fastening Type	Shielding	Mounting Type	Voltage Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Feature	Contact Finish - Mating	Ingress Protection	Material Flammability Rating	Color	Insert Material	Contact Material	Current Rating (Amps)	Termination	Orientation	Primary Material
Switchcraft Inc. EN3P5MPX	Bayonet Lock	Unshielded	Panel Mount, Through Hole	250 VAC	Male Pins, Receptacle	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Gold	IP66/IP68	UL94 V-0	Black	Elastomer	Copper Alloy	7.5 A	Solder	Keyed	Plastic
Switchcraft Inc. EN3P5MX	Bayonet Lock	Unshielded		250 VAC	Male Pins, Receptacle	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Gold	IP66/IP68	UL94 V-0	Black	Elastomer	Copper Alloy	7.5 A		Keyed	Plastic
Switchcraft Inc. EN3P5MRAPCBW	Bayonet Lock	Unshielded	Panel Mount, Right Angle, Through Hole	250 VAC	Male Pins, Receptacle	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Gold	IP66/IP68	UL94 V-0	Black	Elastomer	Copper Alloy	4 A	Circuit Board, Solder	Keyed	Plastic
Switchcraft Inc. EN3P5MRAPC	Bayonet Lock	Unshielded	Panel Mount, Right Angle, Through Hole	250 VAC	Male Pins, Receptacle	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Gold	IP66/IP68	UL94 V-0	Black	Elastomer	Copper Alloy	4 A	Solder	Keyed	Plastic
Switchcraft Inc. EN3P5MRAPCBN	Bayonet Lock	Unshielded	Panel Mount, Right Angle, Through Hole	250 VAC	Male Pins, Receptacle	65 °C	-40 °C	General Purpose, Instrumentation, Marine, Medical	Bulkhead - Front Side Nut	Gold	IP66/IP68	UL94 V-0	Black	Elastomer	Copper Alloy	4 A	Circuit Board, Solder	Keyed	Plastic
