SCM20-161T-RC
ActiveAllied Components International
CMC 340MA 2LN 160 OHM SMD
SCM20-161T-RC
ActiveAllied Components International
CMC 340MA 2LN 160 OHM SMD
Description
General part information
SCM20-161T-RC

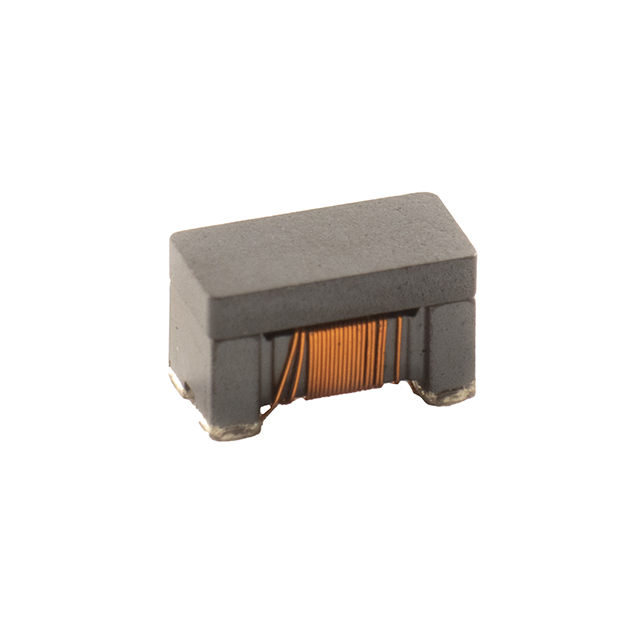

2 Line Common Mode Choke Surface Mount 160 Ohms @ 100 MHz 340mA DCR 400mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | SCM20-161T-RC |
|---|---|
| Current Rating (Max) | 340 mA |
| DC Resistance (DCR) (Max) | 400 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.083 in |
| Impedance | 160 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - DC | 50 V |
