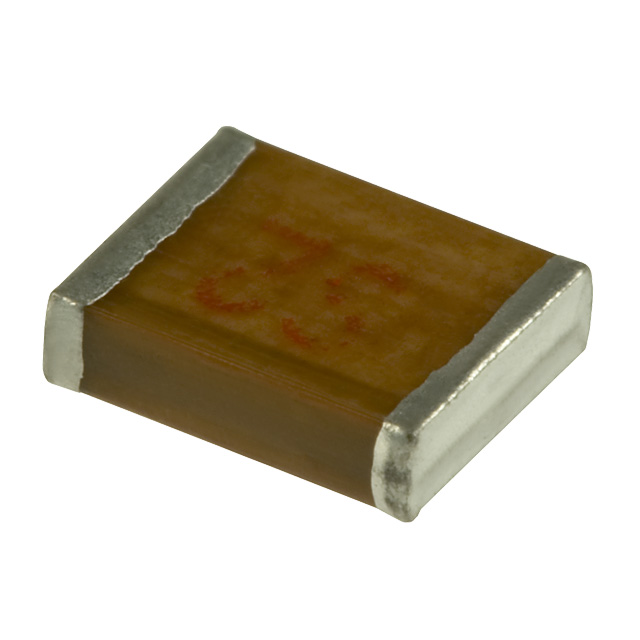

MC18FA471J
ObsoleteCornell Dubilier Knowles
CAP MICA 470PF 5% 100V 1812
MC18FA471J
ObsoleteCornell Dubilier Knowles
CAP MICA 470PF 5% 100V 1812
Description
General part information
MC18FA471J
470 pF Mica Capacitor 100 V 1812 (4532 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | MC18FA471J |
|---|---|
| Capacitance | 470 pF |
| Dielectric Material | Mica |
| Features | RF, Low Loss, High Q |
| Height - Seated (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1812 (4532 Metric) |
| Size / Dimension Length | 0.177 in |
| Size / Dimension Width | 0.126 in |
| Tolerance | 5 % |
| Voltage - Rated | 100 VAC/DC |
