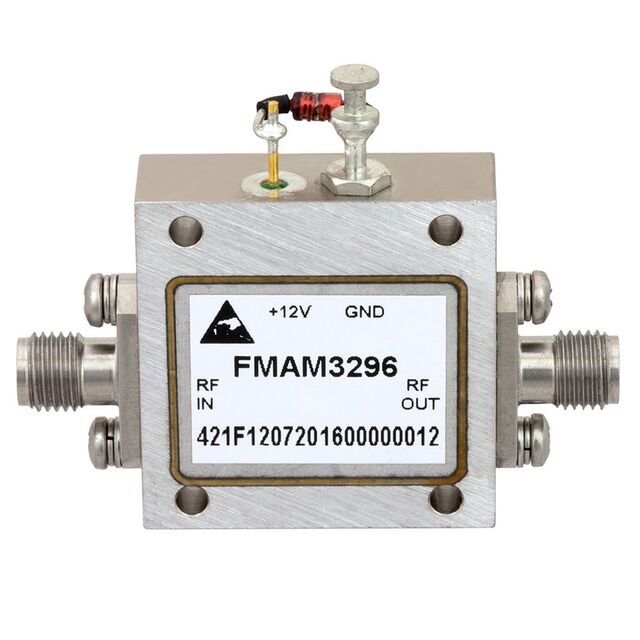

FMAM3296
ObsoleteFairview Microwave
BROADBAND AMP TYPE SMA 12GHZ-18G
FMAM3296
ObsoleteFairview Microwave
BROADBAND AMP TYPE SMA 12GHZ-18G
Description
General part information
FMAM3296
RF Amplifier IC General Purpose 12GHz ~ 18GHz Module
Technical Specifications
Parameters and characteristics for this part
| Specification | FMAM3296 |
|---|---|
| Current - Supply | 100 mA |
| Frequency (Max) | 18 GHz |
| Frequency (Min) | 12 GHz |
| Gain | 18 dB |
| Mounting Type | Chassis Mount |
| Noise Figure | 3.5 dB |
| P1dB | 13 dBm |
| Package / Case | Module, SMA Connectors |
| Package Name | Module |
| RF Type | General Purpose |
| Voltage - Supply (Maximum) | 13 V |
| Voltage - Supply (Minimum) | 11 VDC |
