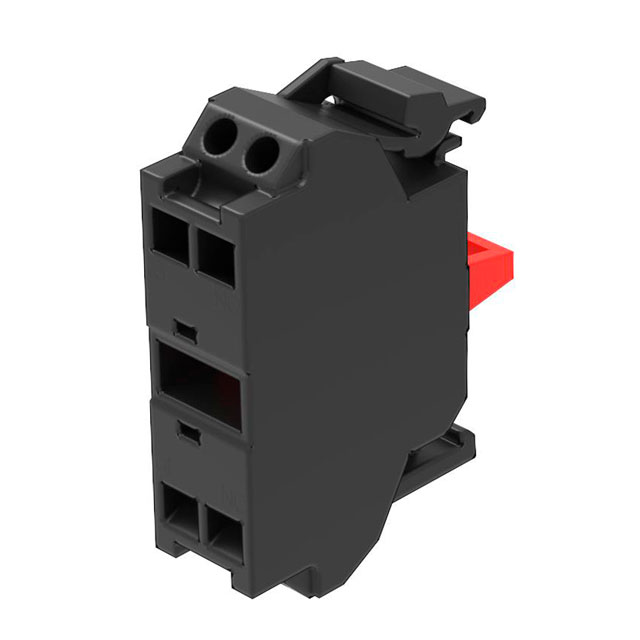

45-312.1X40
ActiveEAO
CONTACT BLOCK SPST-NC 10A 230V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
45-312.1X40
ActiveEAO
CONTACT BLOCK SPST-NC 10A 230V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 45-312.1X40 | 45-312 Series |
|---|---|---|
| (Select First, Then Apply Filters) Compatible Series | 45, EAO | 45, EAO |
| Circuit | SPST-NC | SPST-NC |
| Contact Rating @ Voltage | 10 A | 10 A |
| Requires | Switch Body | Switch Body |
| Termination Style | Spring Terminal | Screw Terminal, Spring Terminal |
45-312 Series
CONTACT BLOCK SPST-NC 10A 230V
| Part | Circuit | Contact Rating @ Voltage | Termination Style | (Select First, Then Apply Filters) Compatible Series | Requires |
|---|---|---|---|---|---|
EAO 45-312.1Z10 | SPST-NC | 10 A | Screw Terminal | 45, EAO | Switch Body |
EAO 45-312.1X40 | SPST-NC | 10 A | Spring Terminal | 45, EAO | Switch Body |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.08 | |
| 10 | $ 12.79 | |||
| 25 | $ 12.65 | |||
Description
General part information
45-312 Series
Configurable Contact Block SPST-NC 10A @ 230VAC
