LSIC2SD065C20A
ObsoleteLITTELFUSE
DIODE SIL CARB 650V 45A TO252
LSIC2SD065C20A
ObsoleteLITTELFUSE
DIODE SIL CARB 650V 45A TO252
Description
General part information
LSIC2SD065C20A

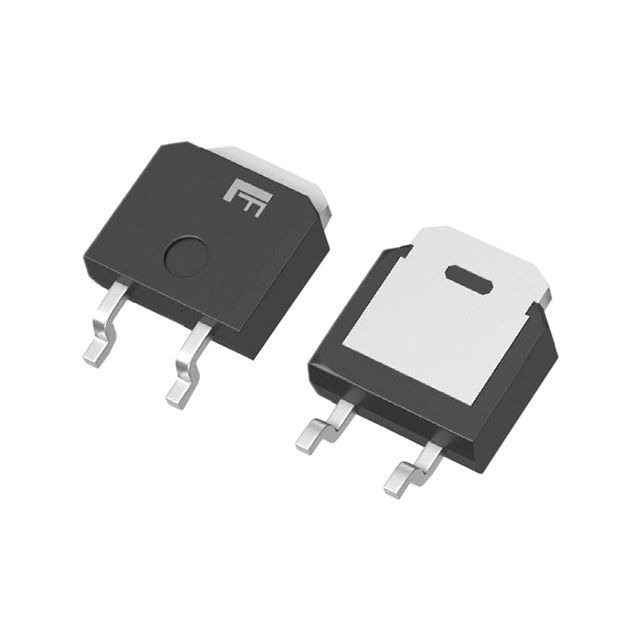

Diode 650 V 45A Surface Mount TO-252 (DPAK)
Technical Specifications
Parameters and characteristics for this part
| Specification | LSIC2SD065C20A |
|---|---|
| Capacitance | 960 pF |
| Current - Average Rectified (Io) | 45 A |
| Current - Reverse Leakage | 50 µA |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction (Max) | 175 °C |
| Operating Temperature - Junction (Min) | -55 °C |
| Package / Case | SC-63, DPAK (2 Leads + Tab), TO-252-3 |
| Package Name | TO-252 (DPAK) |
| Reverse Recovery Time (trr) | 0 ns |
| Speed | No Recovery Time |
| Speed - Fast Recovery (Minimum) | 500 mA |
| Speed - Recovery Current | 500 mA, 500 mA |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 650 V |
| Voltage - Forward (Vf) (Max) | 1.8 V |
