Description
General part information

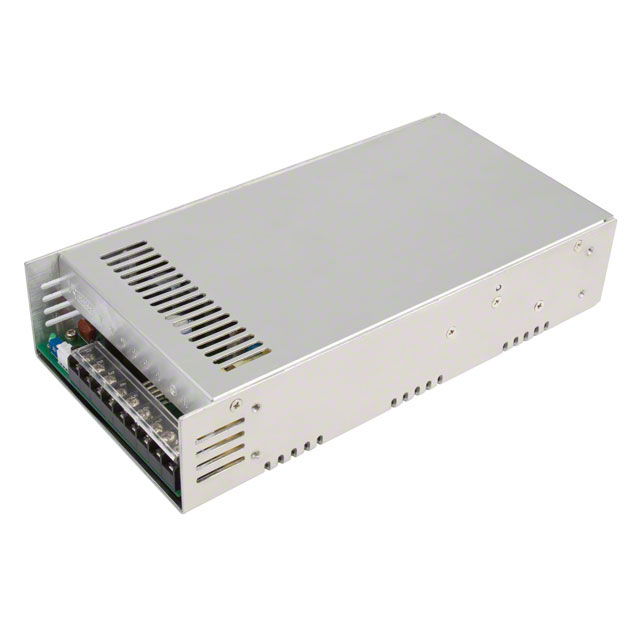

LCL500PS12
Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | LCL500PS12 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output 1 | 42 A |
| Efficiency | 88 % |
| Features | Adjustable Output, Remote On/Off, Remote Sense, Universal Input |
| Minimum Load Required | No |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -10 °C |
| Power (Watts) | 500 W |
| Size / Dimension Height | 2.08 in |
| Size / Dimension Length | 9.84 in |
| Size / Dimension Width | 5 in |
| Type | Enclosed |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output 1 | 12 V |
