AWP 252010FW-1R0M
ObsoleteTAI-TECH Advanced Electronics Co., Ltd.

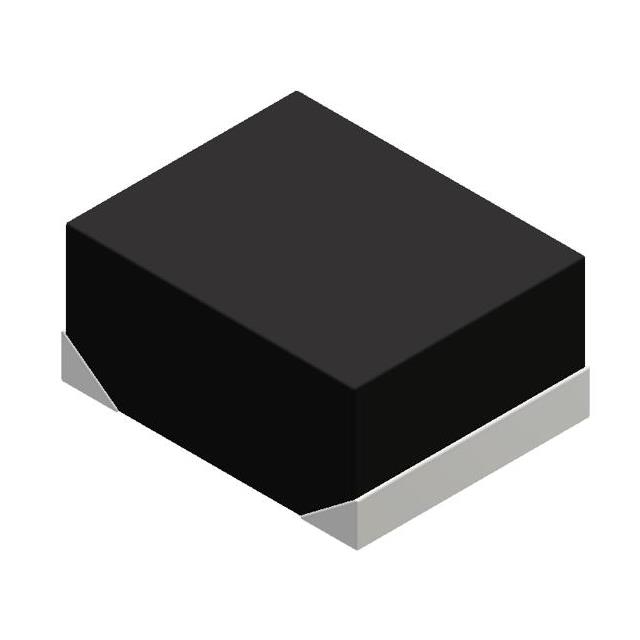

1.0 UH SHIELDED MOLDED INDUCTOR
AWP 252010FW-1R0M
ObsoleteTAI-TECH Advanced Electronics Co., Ltd.
1.0 UH SHIELDED MOLDED INDUCTOR
Description
General part information
AWP 252010FW-1R0M
1 µH Unshielded Molded Inductor 3 A 62mOhm Max 1008 (2520 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | AWP 252010FW-1R0M |
|---|---|
| Current - Saturation (Isat) | 3.35 A |
| Current Rating | 3 A |
| DC Resistance (DCR) (Max) | 62 mOhm |
| Height - Seated (Max) | 0.039 in |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1008 (2520 Metric) |
| Package Name | 1008 |
| Shielding | Unshielded |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Tolerance | 20 % |
| Type | Molded |
