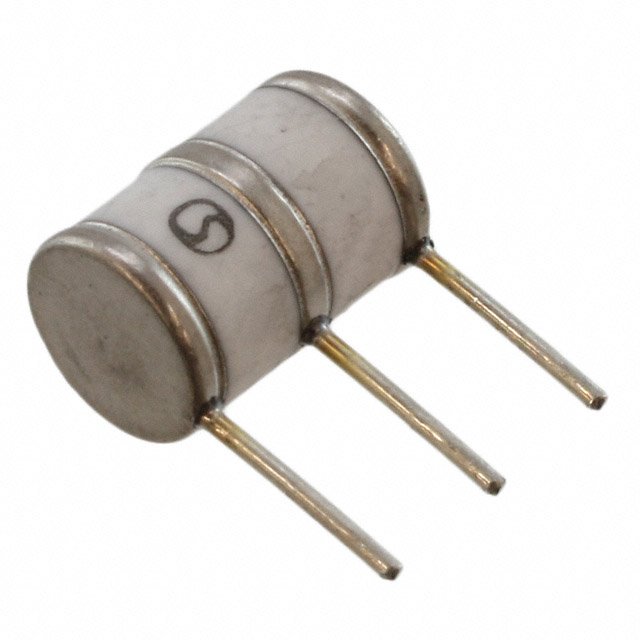

GT-CM3090L

Active

Lumex Opto/Components Inc.

GDT 90V 10KA 3 POLE THROUGH HOLE

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

GDT 90V 10KA 3 POLE THROUGH HOLE

Technical Specifications

Parameters and characteristics for this part

Specification	GT-CM3090L

Fail Short	False
Impulse Discharge Current (8/20µs)	10000 A
Impulse Discharge Current (8/20µs)	10 kA
Mounting Type	Through Hole
Number of Poles	3
Package / Case	Radial - 3 Leads
Tolerance	20 %
Voltage - DC Spark Over (Nom)	90 V

GDT 90V 10KA 3 POLE THROUGH HOLE

Part	Package / Case	Fail Short	Impulse Discharge Current (8/20µs)	Impulse Discharge Current (8/20µs)	Mounting Type	Tolerance	Number of Poles	Voltage - DC Spark Over (Nom)
Lumex Opto/Components Inc. GT-CM3090L	Radial - 3 Leads		10000 A	10 kA	Through Hole	20 %	3	90 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Gas Discharge Tube 90 V 10000A (10kA) ±20% 3 Pole Through Hole

Technical documentation and resources
