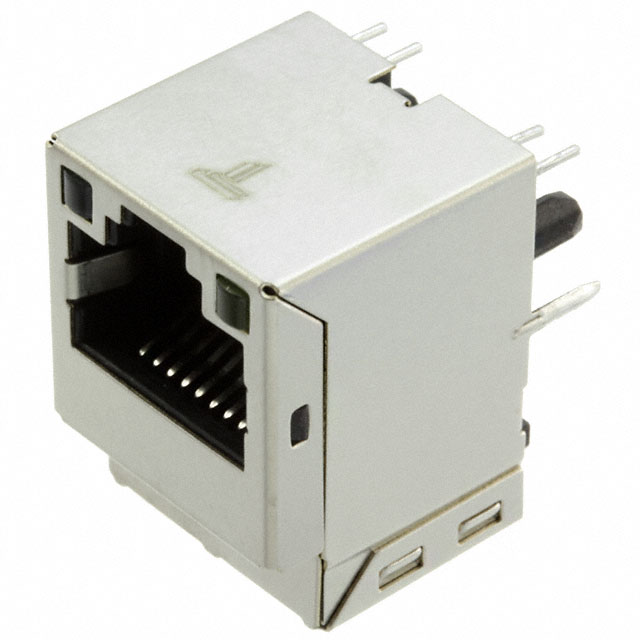

1840419-3

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Search across all available documentation for this part.

Active

TRP Connector B.V.

CONN JACK 1PORT 100 BASE-T

Technical Specifications

Parameters and characteristics for this part

CONN JACK 1PORT 100 BASE-T

Part	Shielding	Features	Shield Material	Contact Finish Thickness	Contact Finish Thickness	Height Above Board [z]	Height Above Board [z]	Number of Rows	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Applications	Tab Direction	Housing Material	Connector Type	LED Color	Contact Finish	Orientation	Termination	Contact Material
TRP Connector B.V. 1840419-3	Shielded	Board Guide	Brass	50 µin	1.27 µm	16.51 mm	0.65 "	1	Through Hole	70 °C	0 °C	1	10/100 Base-T, AutoMDIX	User Selectable	Thermoplastic	RJ45	Yellow - Green	Gold	Vertical	Solder	Phosphor Bronze

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Port RJ45Through Hole 10/100 Base-T, AutoMDIX
